This model features a double-sided beam-to-column connection, illustrating beams connected to a continuous column using a bolted, full-depth end plate. The connection is fixed and features a cross joint with hollow cross-sections, providing structural stability in complex projects.

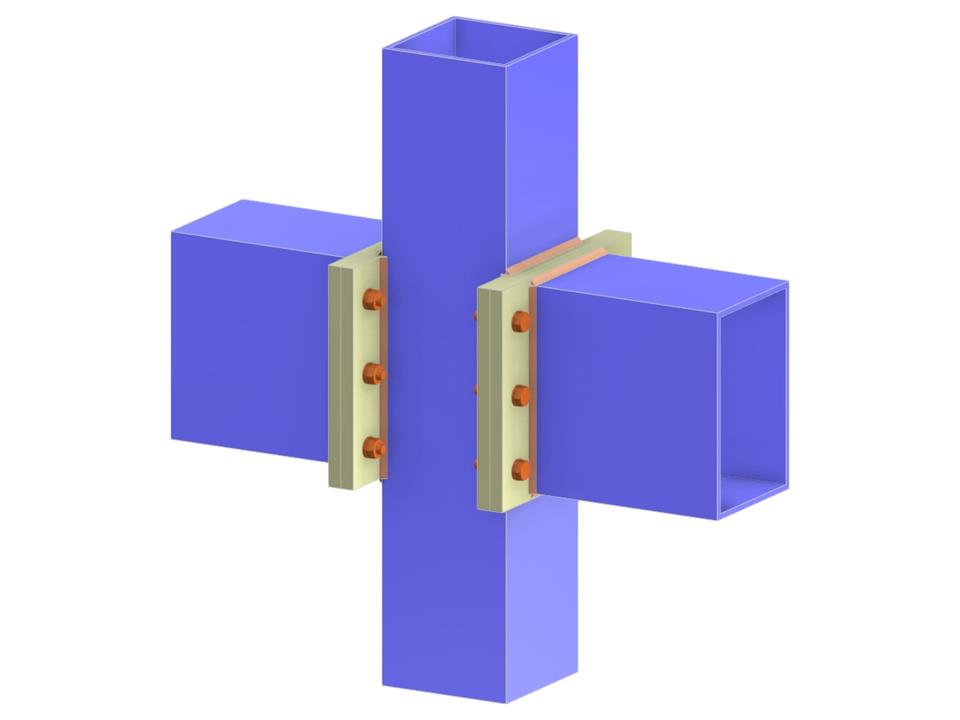

Beam to Column Connection via Full-Depth End Plate to Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.099 tons |
| Dimensions (Metric) | 0.880 x 0.940 x 0.000 m |
| Dimensions (Imperial) | 2.89 x 3.08 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
