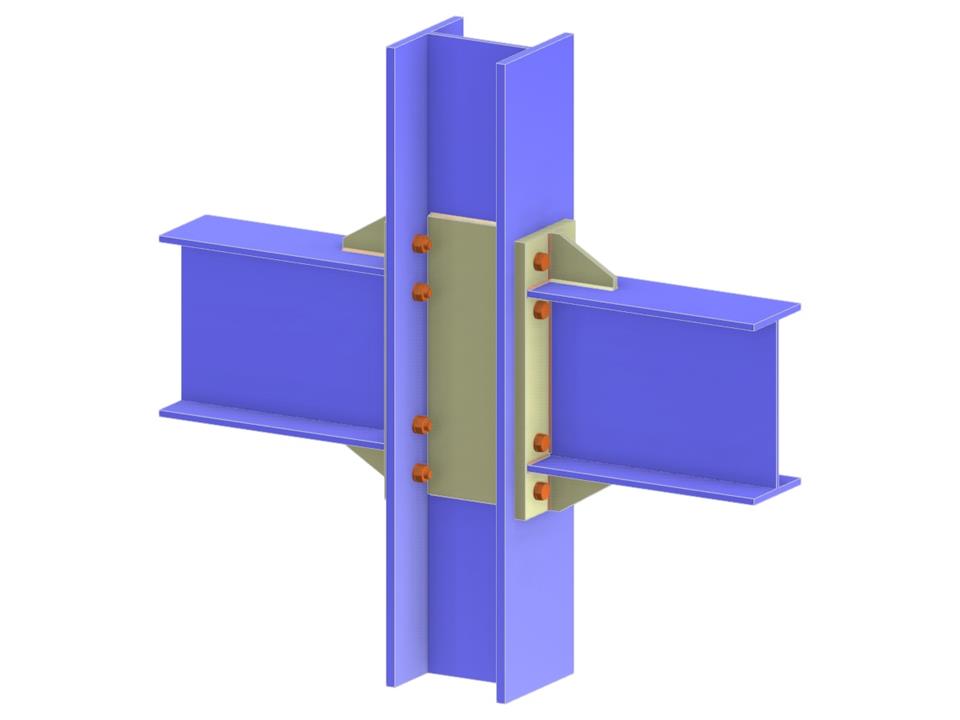

This model showcases a double-sided beam to column connection emphasizing an extended end plate design, rib reinforcements, and a bolted, fixed beam configuration. The continuous column setup with column web reinforcement enhances the structural integrity. The model integrates cross joint techniques to optimize connection performance and ensure effective load transfer.
Beam to Column Flange Connection via Extended End Plate and Rib
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.128 tons |
| Dimensions (Metric) | 1.160 x 1.160 x 0.000 m |
| Dimensions (Imperial) | 3.81 x 3.81 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
