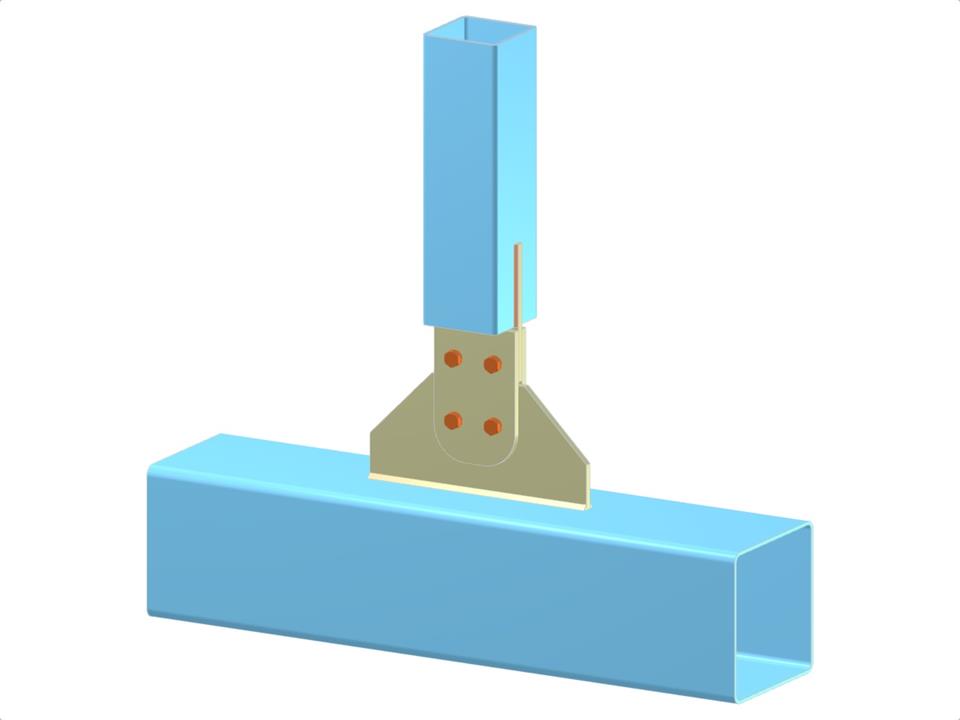

This model showcases a T-joint of the truss with vertical member connection to the chord. It features gusset and notched tongue plate, cover plates, and bolted joint designs. The structure incorporates rectangular hollow sections (RHS), emphasizing efficient load distribution and joint stability in the truss system.

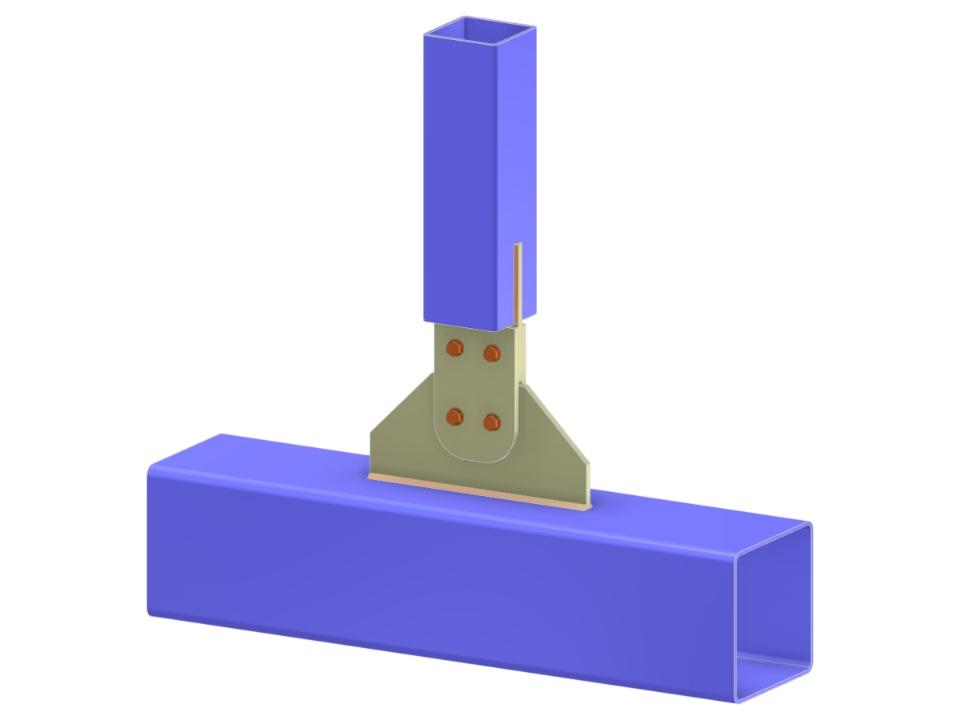

Truss T-Joint | Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.046 tons |
| Dimensions (Metric) | 0,960 x 0,790 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 2.59 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
