This model features a bolted N-joint truss connection, utilizing diagonal and vertical elements that connect to a chord using gusset, tongue, and cap plates. It incorporates hollow cross-sections, specifically circular hollow sections (CHS), to optimize structural efficiency. The design highlights standard industry practices for connecting truss elements securely. This configuration exemplifies the robust engineering of truss systems in modern construction.

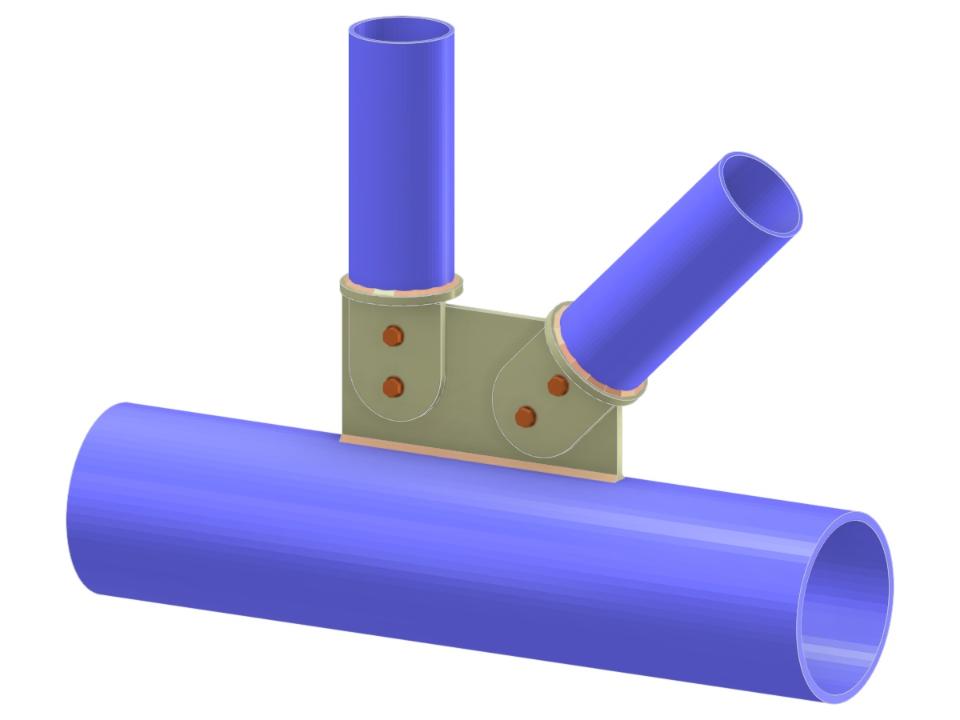

Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cap Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.068 tons |
| Dimensions (Metric) | 0,960 x 0,600 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 1.97 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
