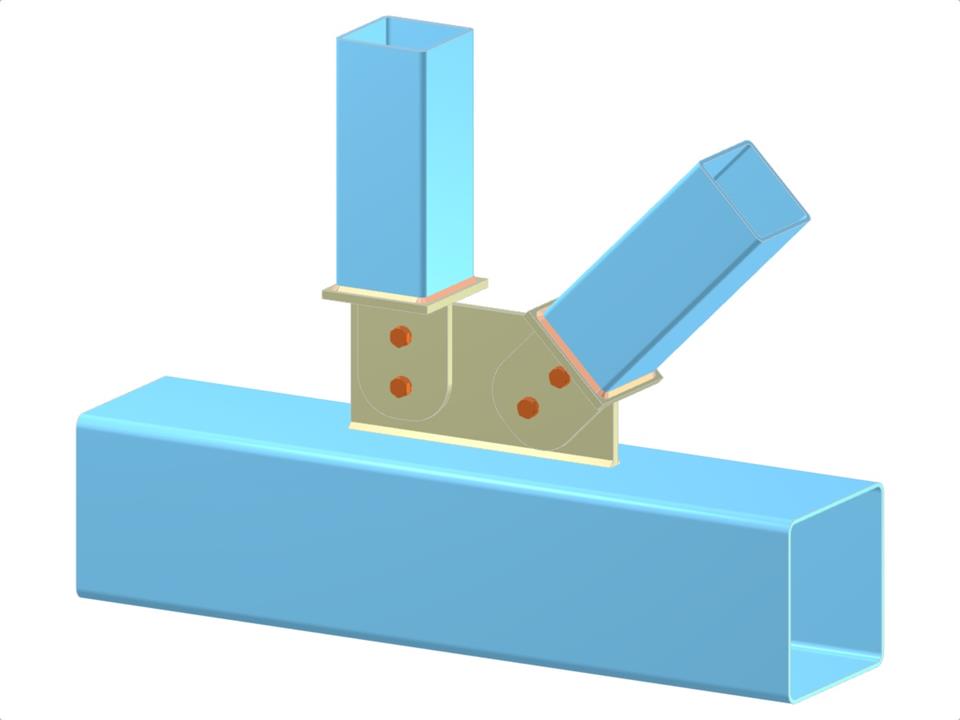

This model features a truss with bolted N-joint connections using hollow cross-sections, specifically rectangular hollow sections (RHS). Elements such as diagonal and vertical to chord connections are handled with precision through gusset, tongue, and cap plates. The structural design is implemented to optimize stability and efficiency in load transfer. Ideal for engineering applications requiring robust joint constructions.
Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cap Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.054 tons |
| Dimensions (Metric) | 0.960 x 0.600 x 0.000 m |
| Dimensions (Imperial) | 3.15 x 1.97 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
