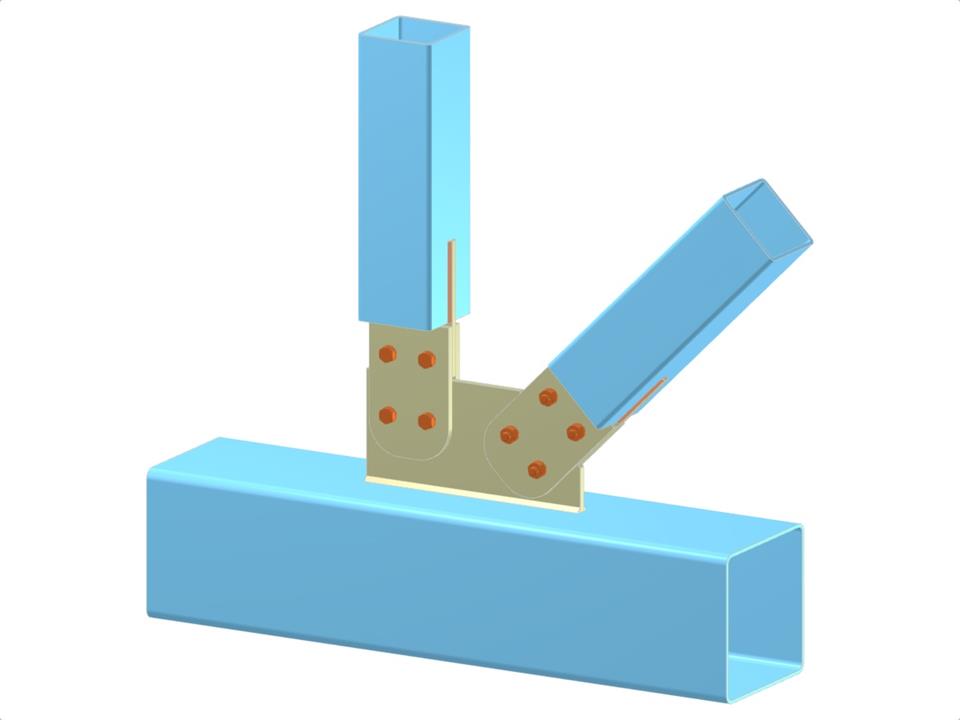

The model features a bolted N-joint using hollow cross-sections of rectangular hollow sections (RHS). Key connection elements include gusset plates, a notched tongue plate, and cover plates. The structure prominently features diagonals and verticals linked to the chord, demonstrating modern truss construction techniques.
Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.060 tons |
| Dimensions (Metric) | 0,965 x 0,790 x 0,000 m |
| Dimensions (Imperial) | 3.17 x 2.59 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
