This model involves the design verification of an ASTM A992 14×132 W-shaped column with pinned ends, subjected to axial compression forces. The analysis follows the AISC 2022 standards, specifically Example E.1A, using both LRFD and ASD methods to determine the column's adequacy. The column is pinned at both ends in both axes, ensuring a realistic simulation of structural behavior under the specified loading conditions.

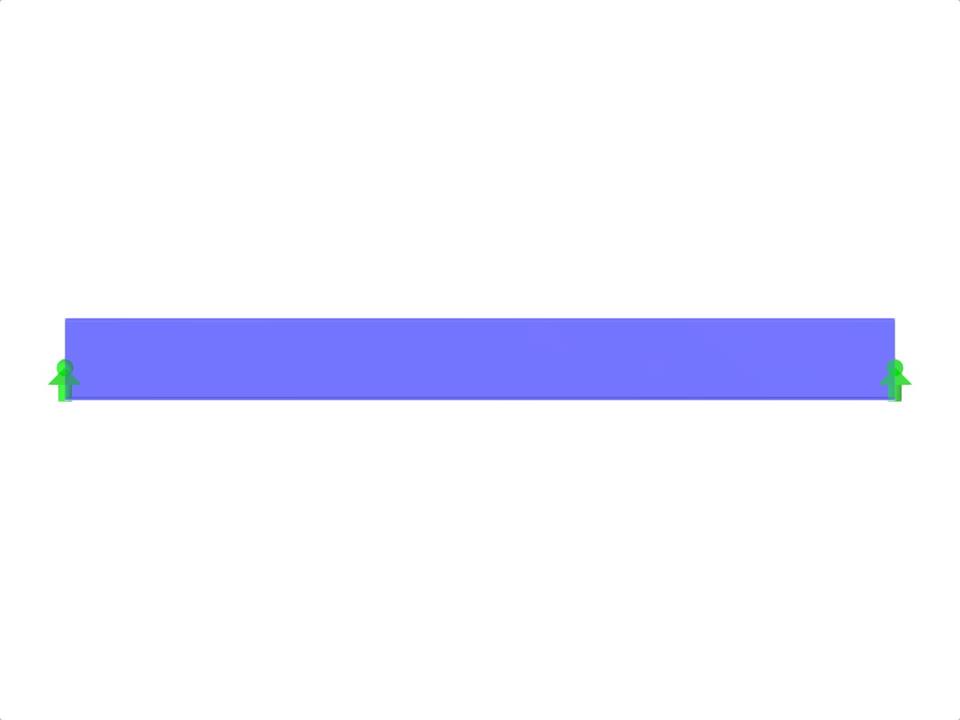

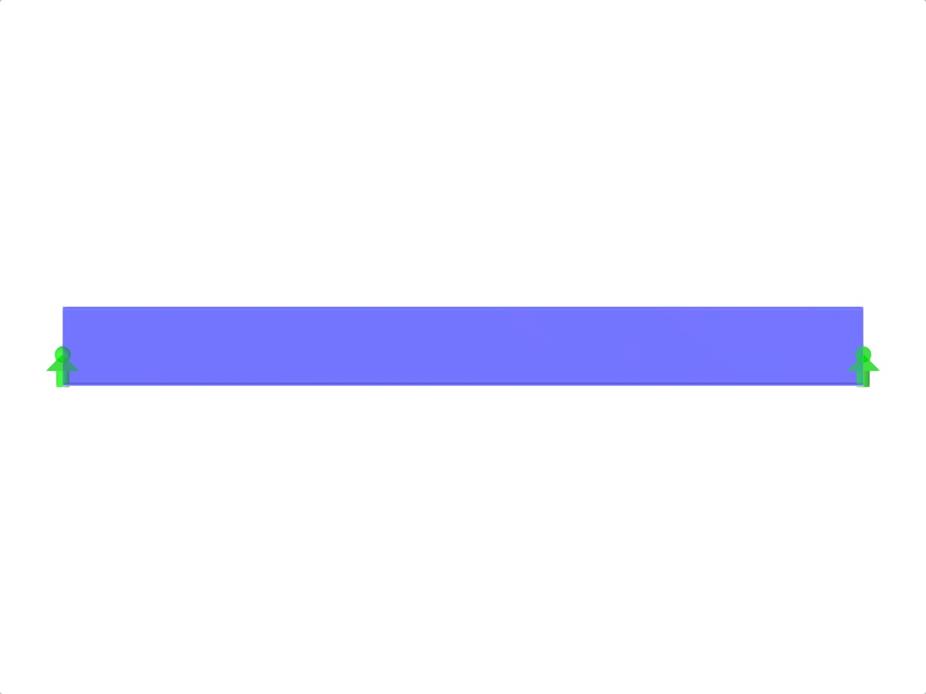

Verification Example 1031 | W-Shaped Column Design Acc. to AISC 2022
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.797 tons |
| Dimensions (Metric) | 0.000 x 9.144 x 0.000 m |
| Dimensions (Imperial) | 0 x 30 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
