This model features a detailed design of a column base with an I-profile column and diagonal L-profile connected to the column web. It includes a base plate, ribs, stiffeners, and a gusset plate with a bolted diagonal connection. The setup also involves anchoring for structural integrity. These components ensure the robust connection of the column elements for stability and load transfer.

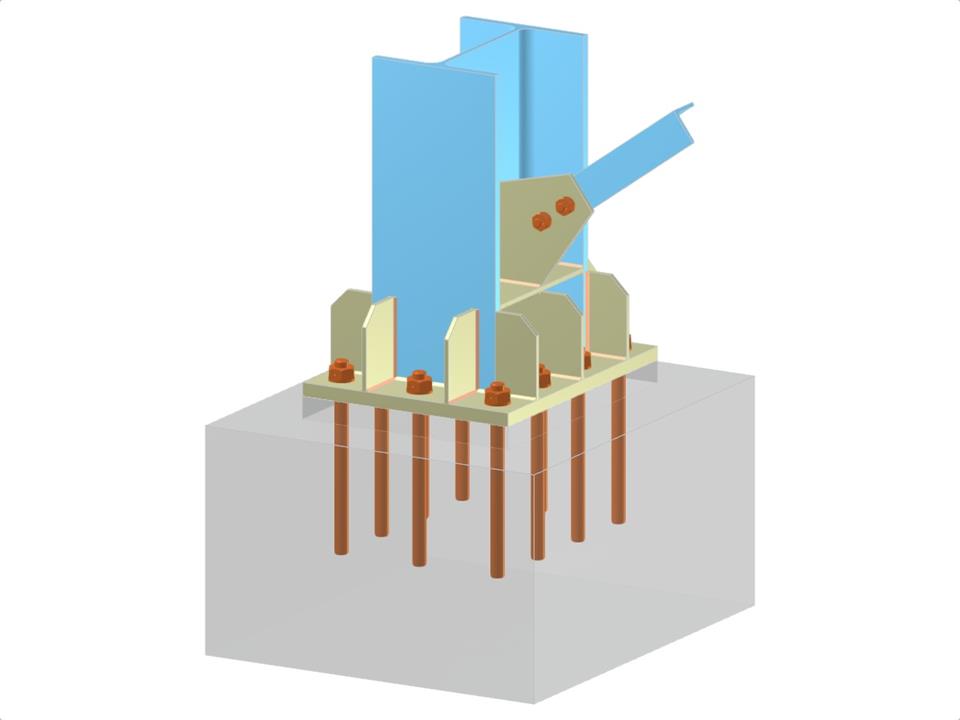

Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.137 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
