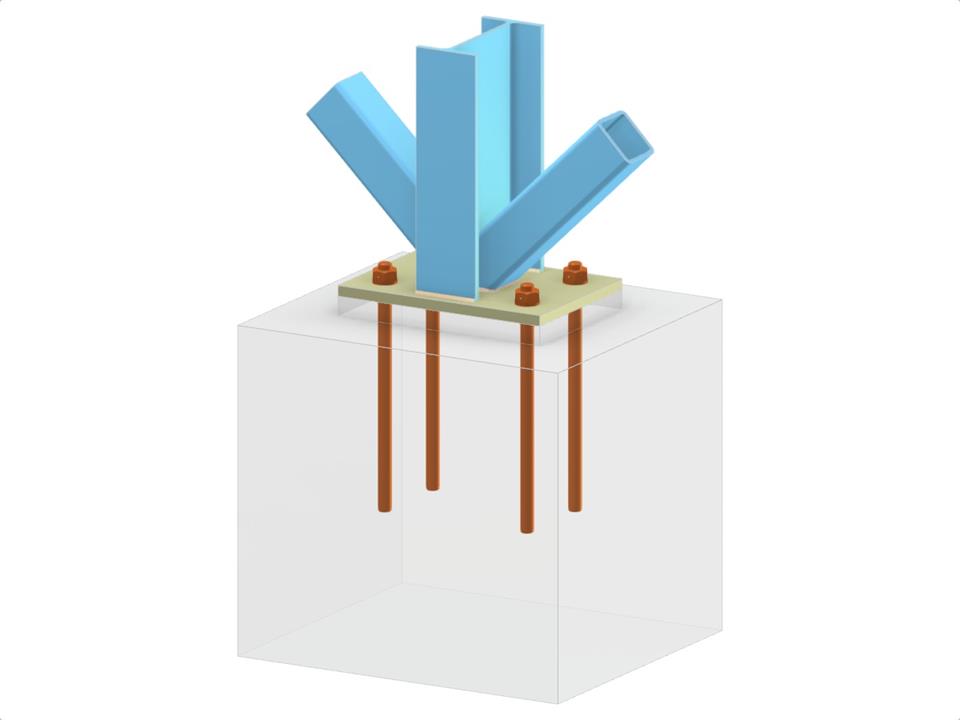

This model illustrates a steel column base featuring an I-profile column and two RHS diagonals of vertical bracing connected to the web of the column. The structure is anchored through a base plate and includes a welded diagonal connection for added stability. Such configurations are typical in industrial and commercial construction, ensuring efficient load transfer and stability.
Column Base with Two Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.054 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
