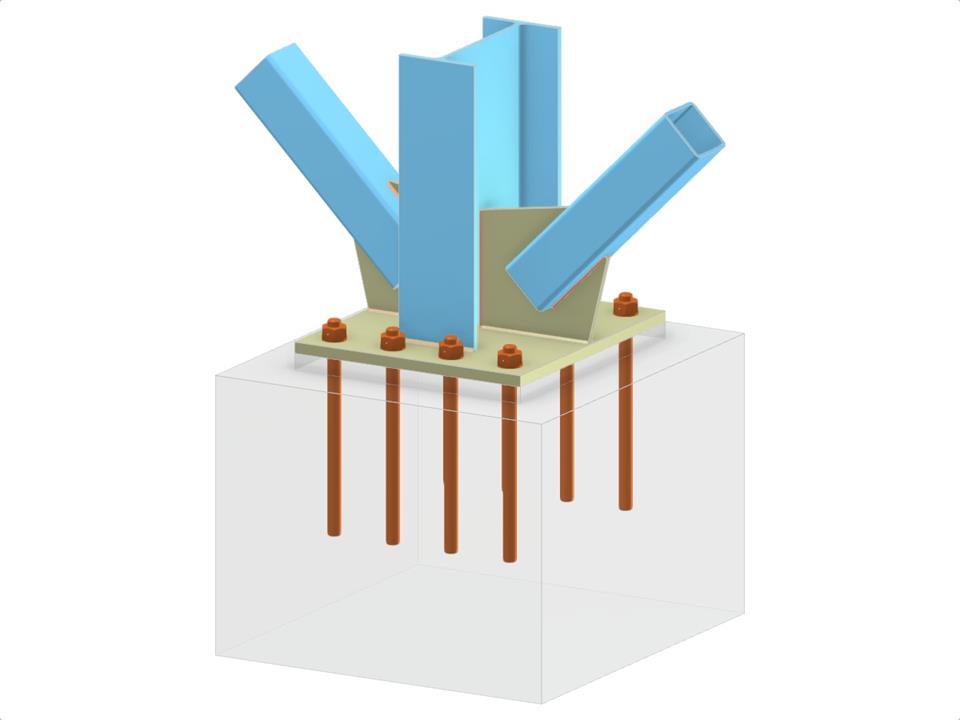

This model features a structural assembly consisting of a column base with an I-profile column. It includes two RHS diagonals connected to the column web, a base plate, and a gusset plate. The connections are welded, focusing on the diagonal elements, and the assembly is secured through anchoring mechanisms. These components demonstrate a detailed approach to designing a stable and structurally sound column support system.

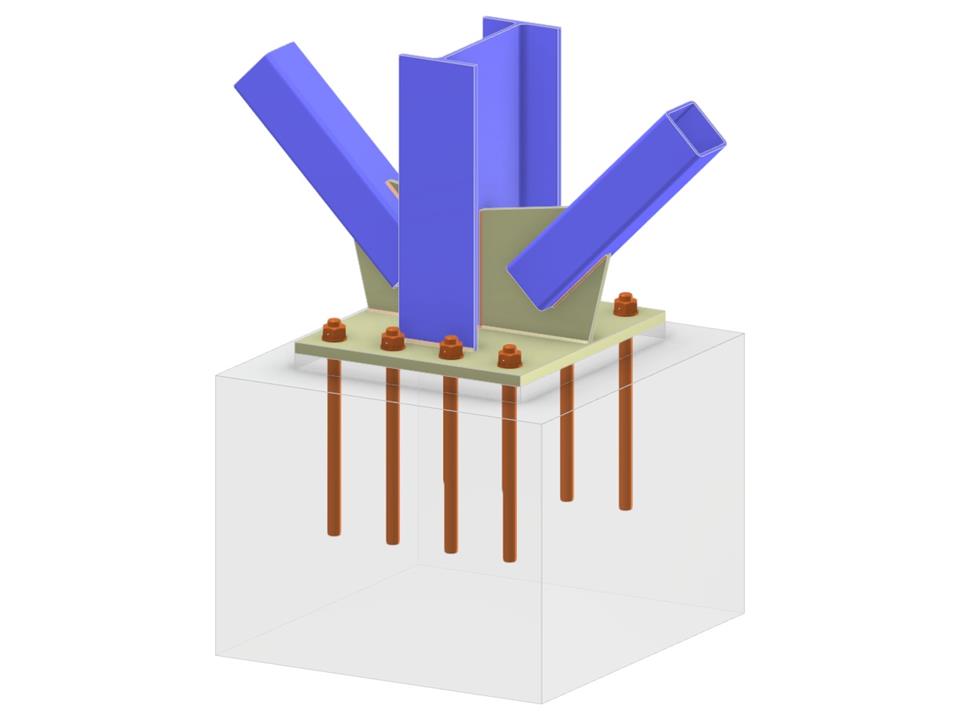

Column Base with Diagonal Welded Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.083 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
