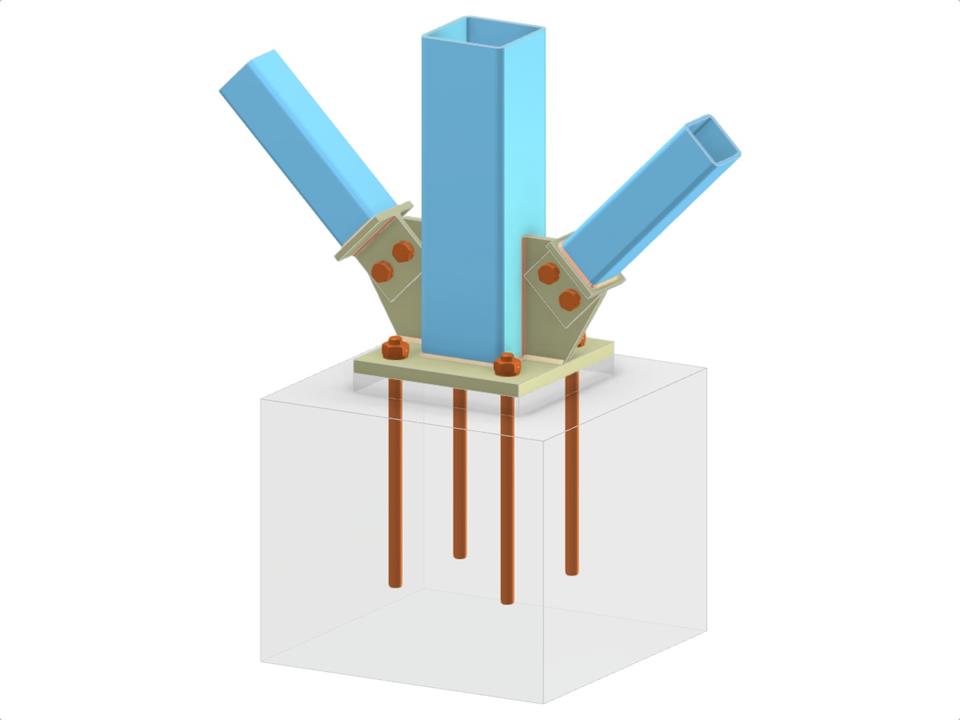

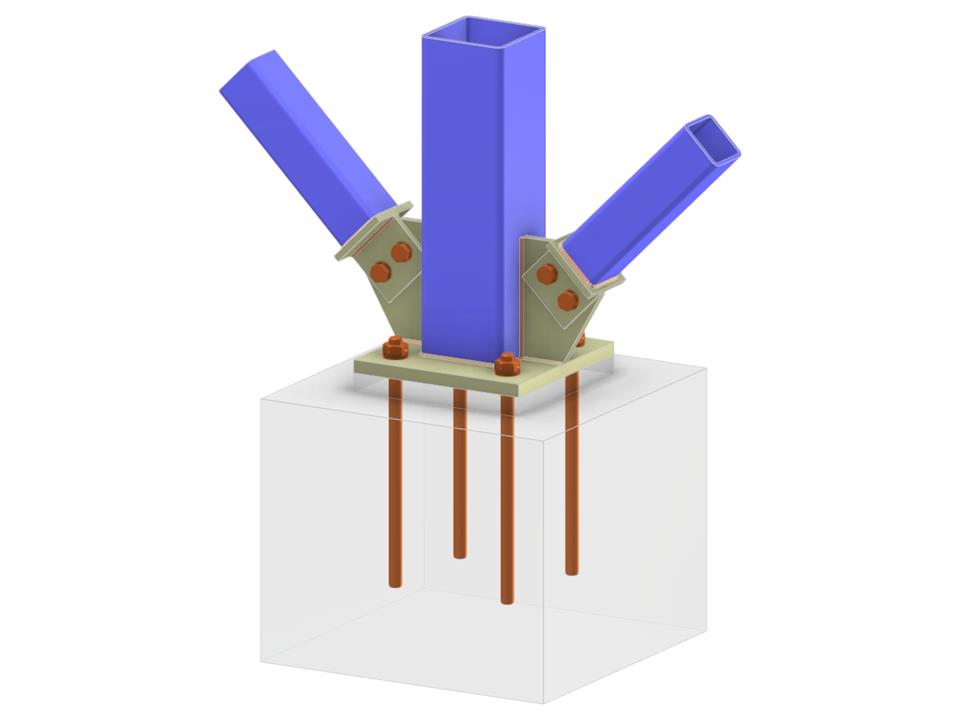

This model features a column base with a rectangular hollow section (RHS), two diagonal RHS members, and essential components like a base plate and a through-going gusset plate. It includes connecting plates, a cap plate, and a bolted diagonal connection for reliable anchoring. The model serves as a detailed example of steel connection design.
Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.056 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
