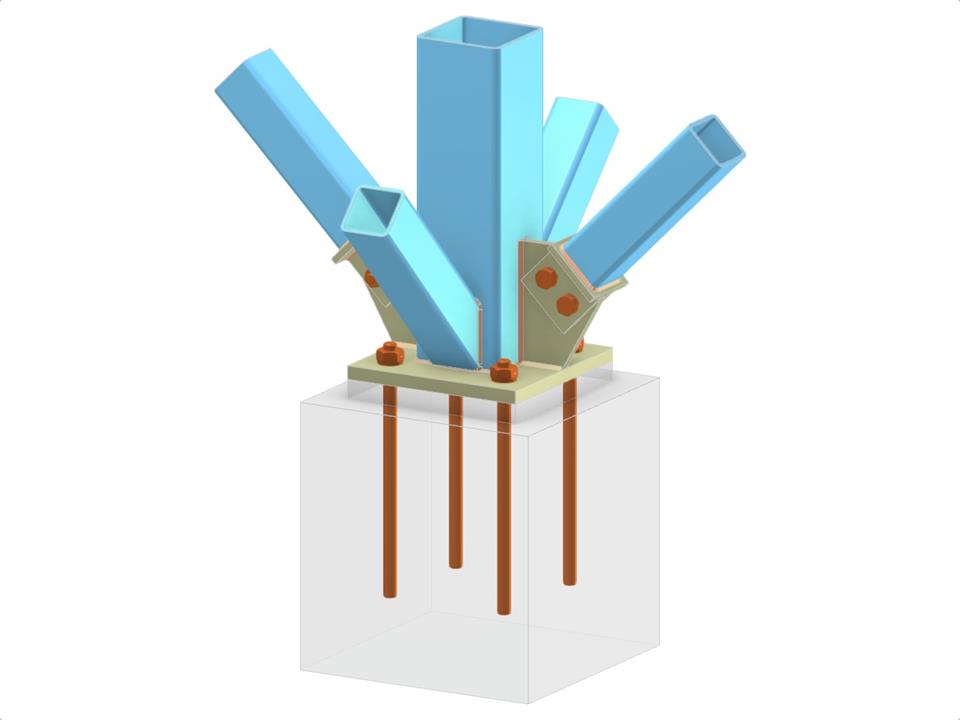

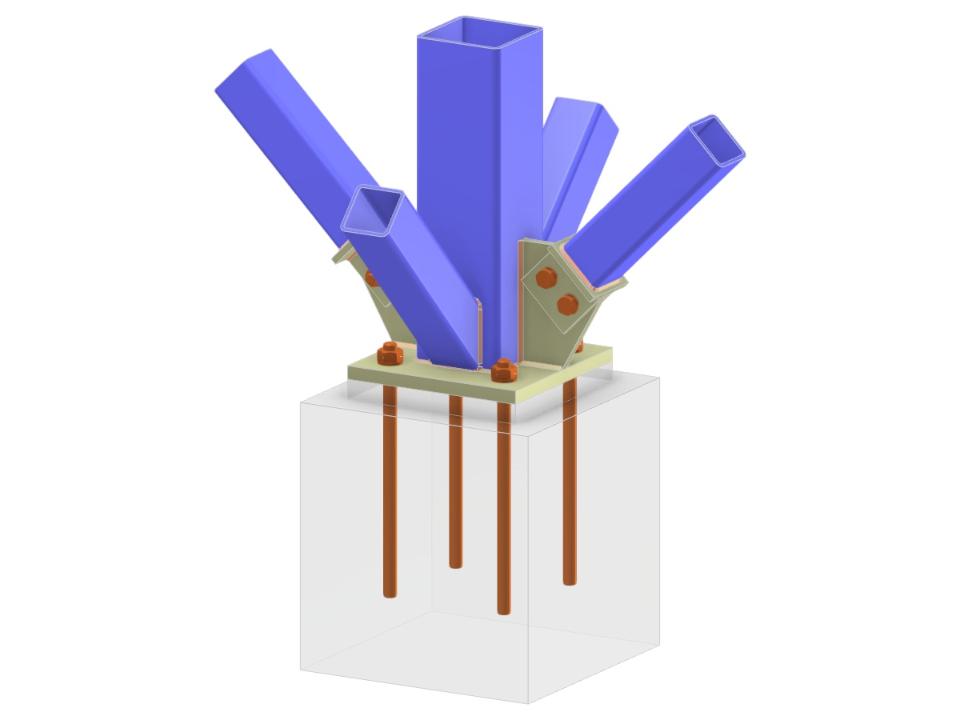

The model features a column base with a rectangular hollow section (RHS) column and four RHS diagonals of vertical bracing. It includes a base plate, gusset plate, connecting tongue plate, and end plate. The diagonals are joined using bolted and welded connections, and anchoring ensures stability. This setup demonstrates the integration of various structural components for robust support.
Column Base with Welded and Bolted Diagonals of Vertical Bracing
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.088 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
