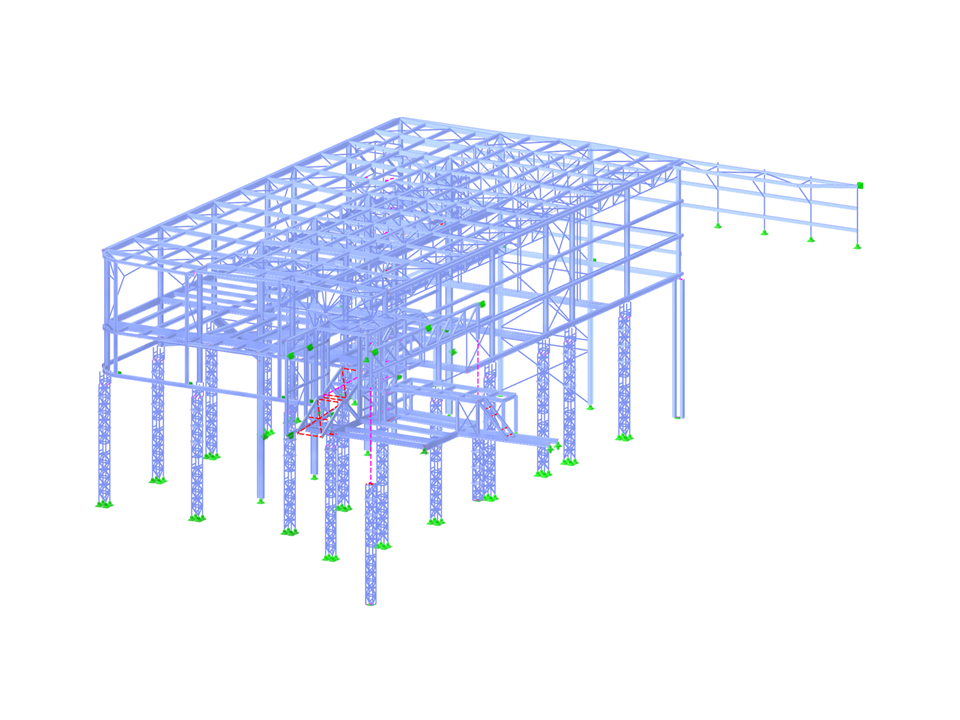

This model includes the structures of cinema halls and the passage roofing at a height of +16.200 m. The roof structure consists of truss and solid wall elements. The vertical load-bearing elements are reinforced for additional loads, and stability is ensured by a combination of frame connections and steel stiffeners. The foyer structure includes a composite sheet metal-concrete slab and is temporarily supported during construction.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Structure of Cinema Halls and Passage Roofing – Centrum Černý Most

No Download Possible Customer Project / View Only
Number of Nodes 3141
Number of Lines 5423
Number of Members 5362
Number of Surfaces 15
Total Weight 262,127 t
Dimensions (Metric) 45.785 x 61.361 x 20.542 m
Dimensions (Imperial) 150.21 x 201.32 x 67.4 feet
Program Version 5.33.01
