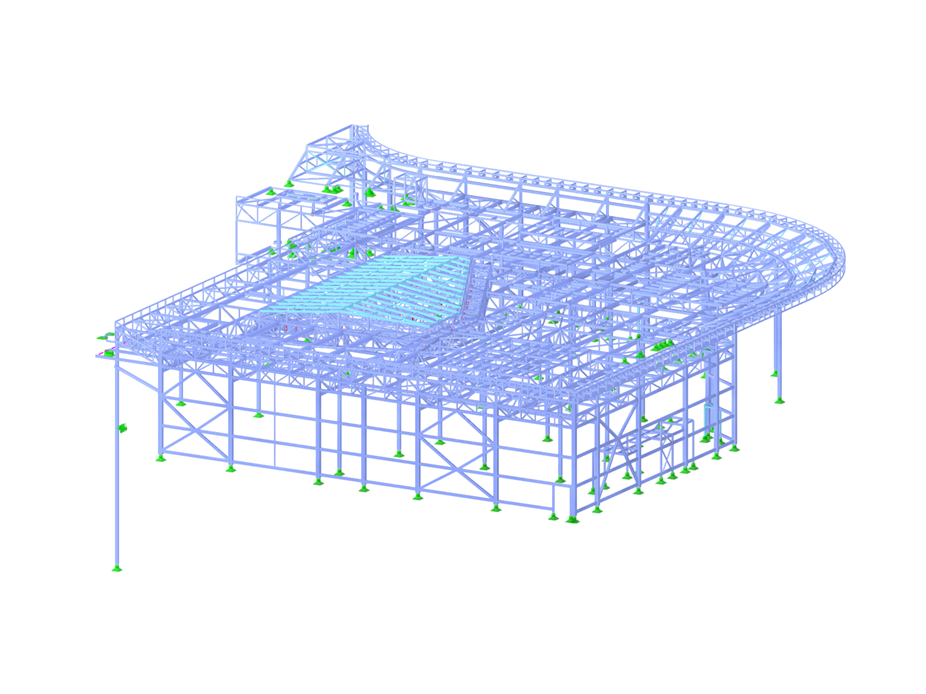

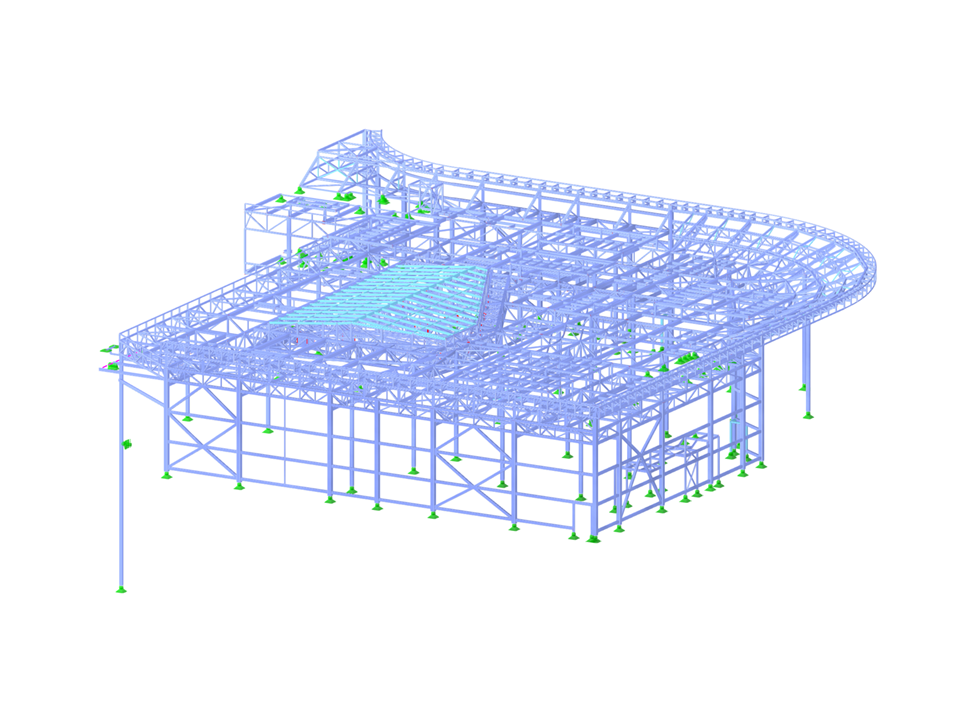

The new extension to the shopping mall includes a steel structure with a system of trusses and roof purlins. The structure allows for dilatation motion using pendulum bracing and includes a glass facade. The primary beams are made of HEA and HEB cross-sections, while the secondary beams include IPE and HEB, which support trapezoidal sheet metal. Horizontal rigidity is ensured by stiffeners.
Extension of Shopping Mall – Centrum Černý Most
No Download Possible
Customer Project / View Only
| Number of Nodes | 4641 |
| Number of Lines | 5164 |
| Number of Members | 5148 |
| Number of Surfaces | 8 |
| Total Weight | 360,981 t |
| Dimensions (Metric) | 65.499 x 72.366 x 25.061 m |
| Dimensions (Imperial) | 214.89 x 237.42 x 82.22 feet |
| Program Version | 5.33.01 |
