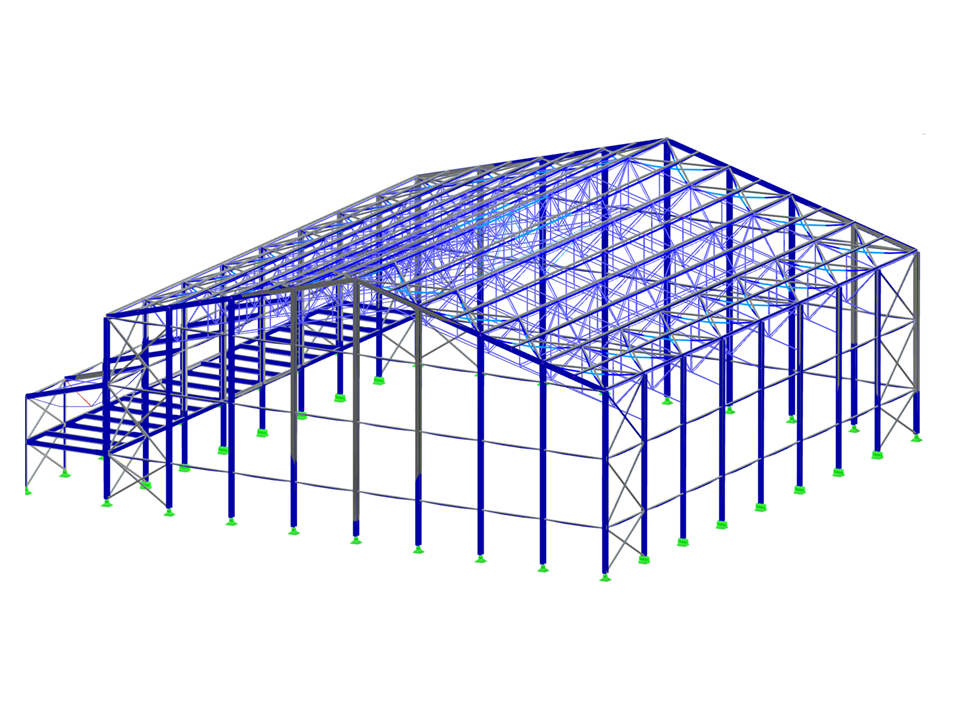

The model depicts a single-bay steel hall designed for tennis and other sports activities, with a main load-bearing structure consisting of truss girders. The hall includes a storage shed, locker rooms, and an entrance area. The study examines four variants of truss geometry with regard to weight and stiffness. The loads on the structure were designed according to ČSN EN standards, including snow and wind loads, taking into account local climatic conditions and the dead loads of the roof and wall cladding. The structural analysis verified the ultimate and serviceability limit states.
Steel Hall for Sports Activities
| Number of Nodes | 697 |
| Number of Lines | 983 |
| Number of Members | 983 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 10 |
| Number of Load Combinations | 48 |
| Number of Result Combinations | 2 |
| Total Weight | 106,369 t |
| Dimensions (Metric) | 43,000 x 17,207 x 40,000 m |
| Dimensions (Imperial) | 141.08 x 56.45 x 131.23 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
