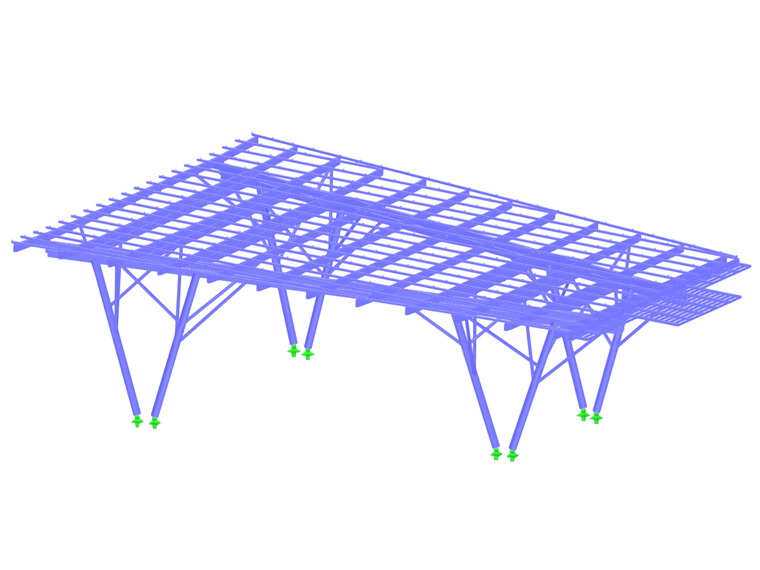

The 39-meter (128-foot) span of the roof canopy is achieved using two double-layer HSS girders that have their distribution across the main V-shaped columns. The double HSS girders were welded together in three segments. Each segment was joined using a concealed bolted connection to ensure high-quality factory fabrication.

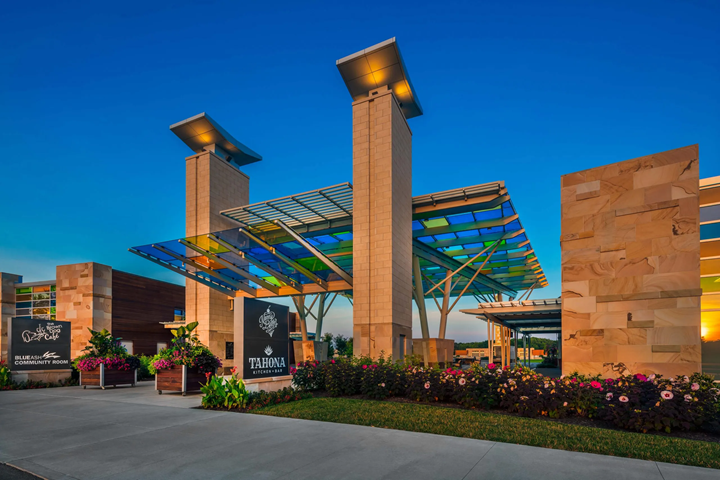

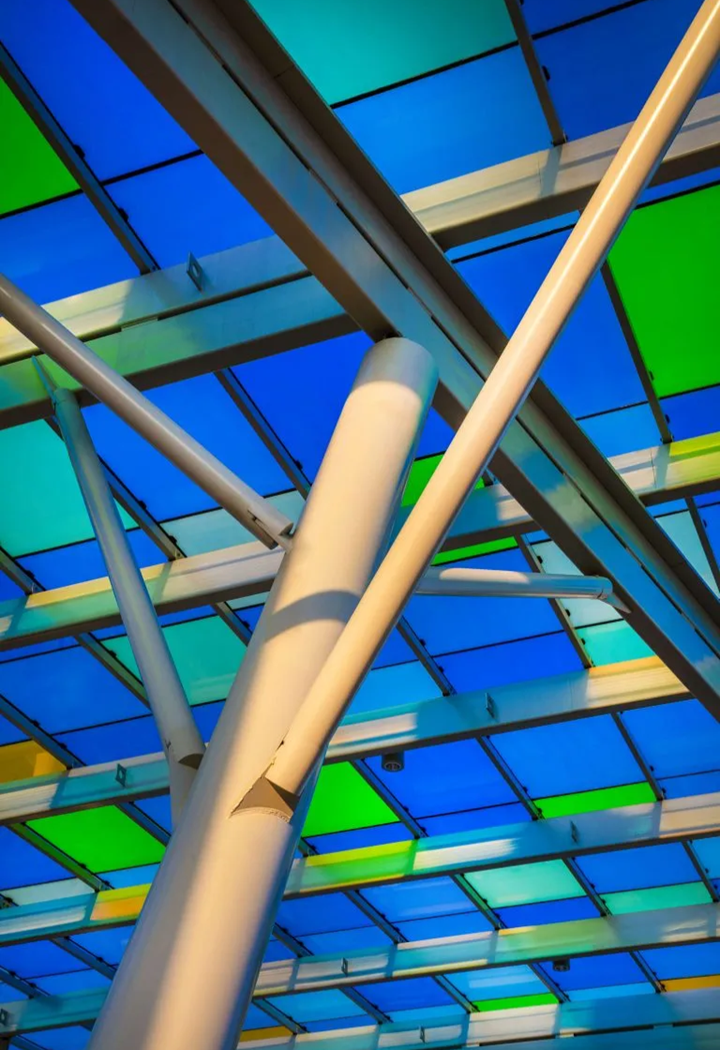

The V-shaped columns and branches help to shorten the span of the main beams and the farthest-reaching roof purlins of the roof canopy. A multicolored glass panel sits atop the steel, casting striking shadows on the ground as the sun moves across the sky.
| Location | 4335 Glendale Milford Rd, Blue Ash, 45242 Ohio, USA |
| Design & Construction | Novum Structures LLC |
| Architect | MSA Architects |
