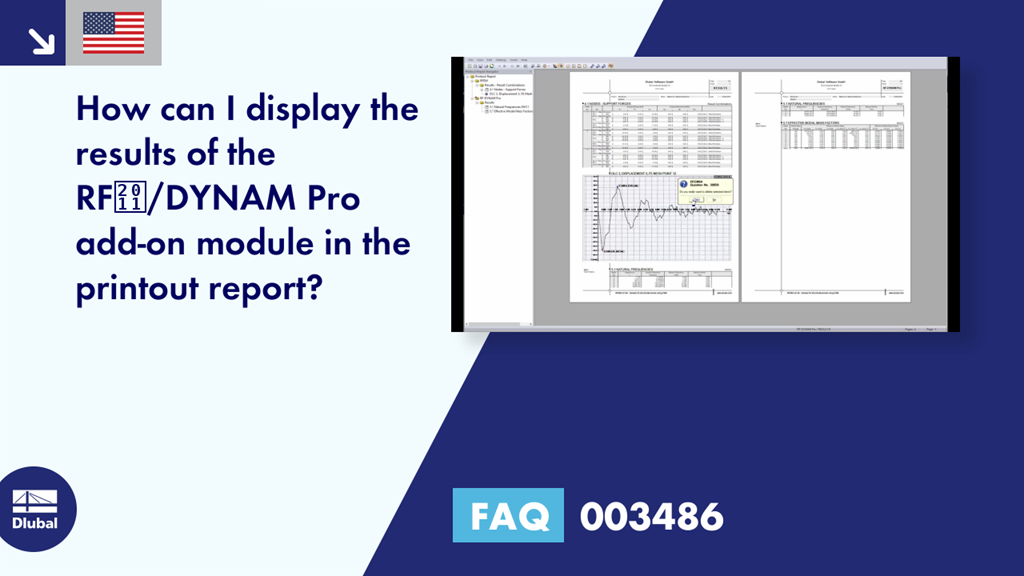

FAQ 003486 | How can I display the results of the RF‑/DYNAM Pro add-on module in the printout report?
Video
First Steps with RFEM
Question
How can I display the results of the RF‑/DYNAM Pro add-on module in the printout report?Answer
The results of the RF‑/DYNAM Pro add-on modules Forced Vibrations , Nonlinear Time History and Equivalent Loads are not listed directly in the printout report. This is generally due to the fact that dynamic calculations require a lot of data and results.In each of the mentioned add-on modules, it is possible to create a result combination with the envelope results. In this generated result combination, you can find the same results as in the main programs and display them in the printout report as usual.
Furthermore, you can print pictures in the printout report as usual. There is also an option to display the time history graphically in the printout report.
