Question:

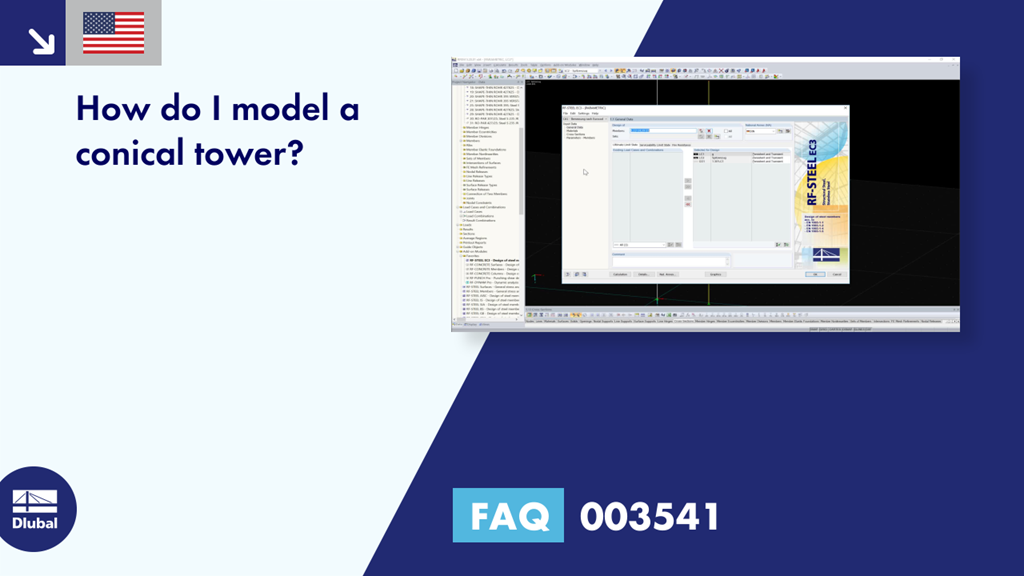

How do I model a conical tower?
Answer:
The cross-section library provides a large number of various cross-sections. For many cross-section shapes, the option of the parametric definition is also available. The video shows an easy way to model a conical tower. When dividing this member, the software automatically determines the new cross-sections at the division points.
