Question:

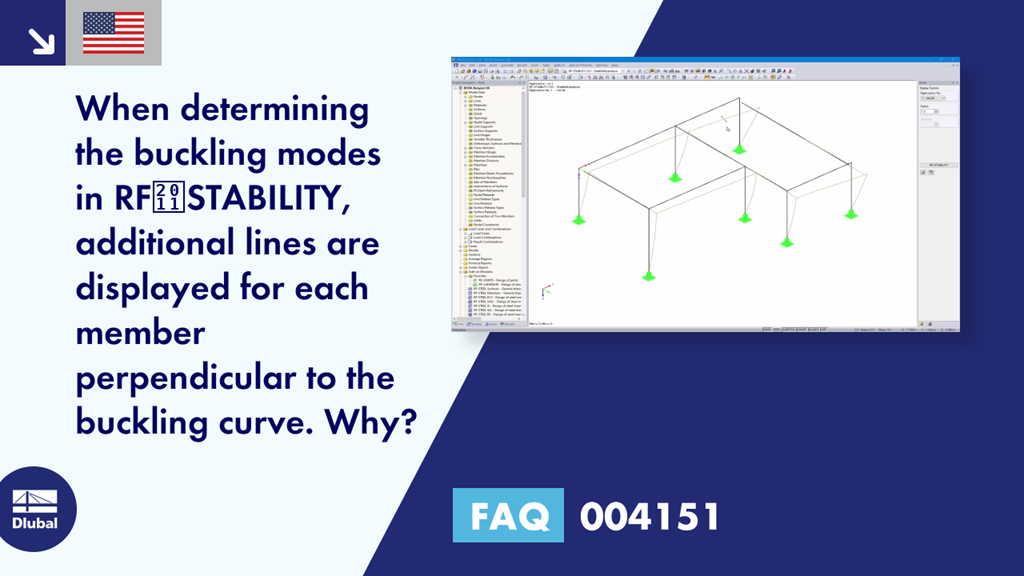

When determining the buckling modes in RF‑STABILITY, additional lines are displayed for each member perpendicular to the buckling curve. Why?
Answer:
These lines represent the local torsional rotation (see Image 01). By default, only torsional rotations φx with standardized values greater than 0.2 are displayed. This ensures clear arrangement of the graphic. The graphical display is controlled directly in the add-on module (see Image 02).
