Question

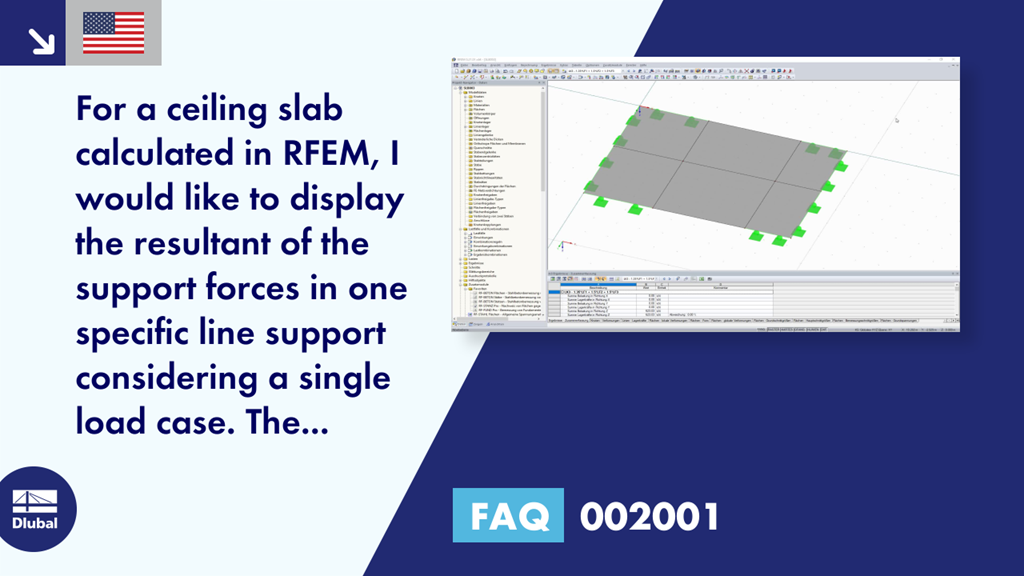

For a floor slab calculated in RFEM, I would like to display the resultant of the support forces on this line support in a single load case.

The aggregate resultant of all support forces in a load case can be displayed. How can I display the resultant of selected line support?

Answer

If you activate the "Info" option in the Project Navigator - Display under Results → Support Reactions, an extended display is shown for each line support. Among other things, it shows the sum of the resulting force as well as its eccentricity.
