Question:

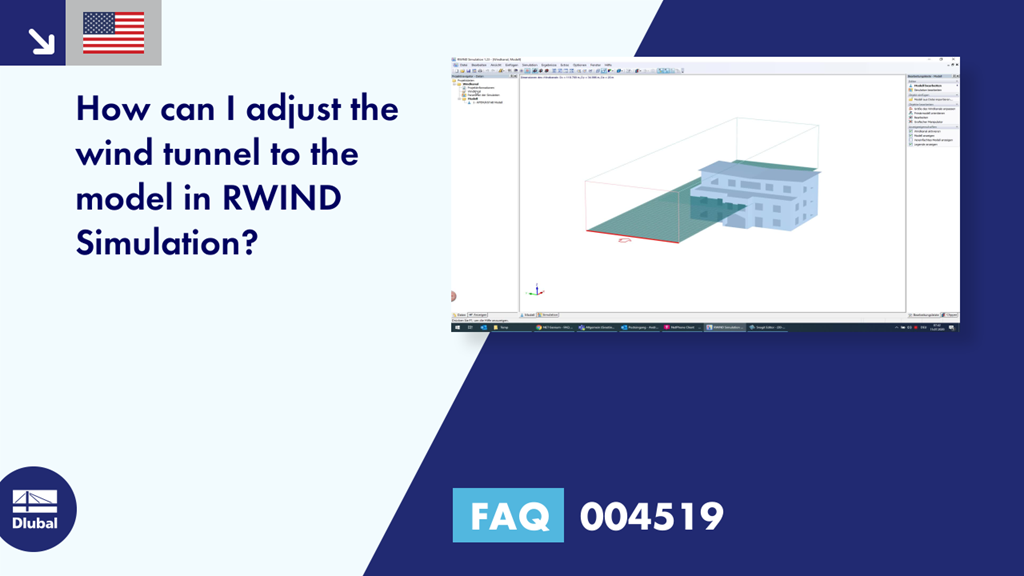

How can I adjust the wind tunnel to the model in RWIND Simulation?
Answer:
If the model is not placed correctly in the wind tunnel, you can use the "Adjust to Model" function in the wind tunnel properties to place the wind tunnel around the model properly.
In this step, the function arranges the wind tunnel floor at the bottom of the model and places the remaining wind tunnel sides next to the model with the usual distance depending on the model dimension.
