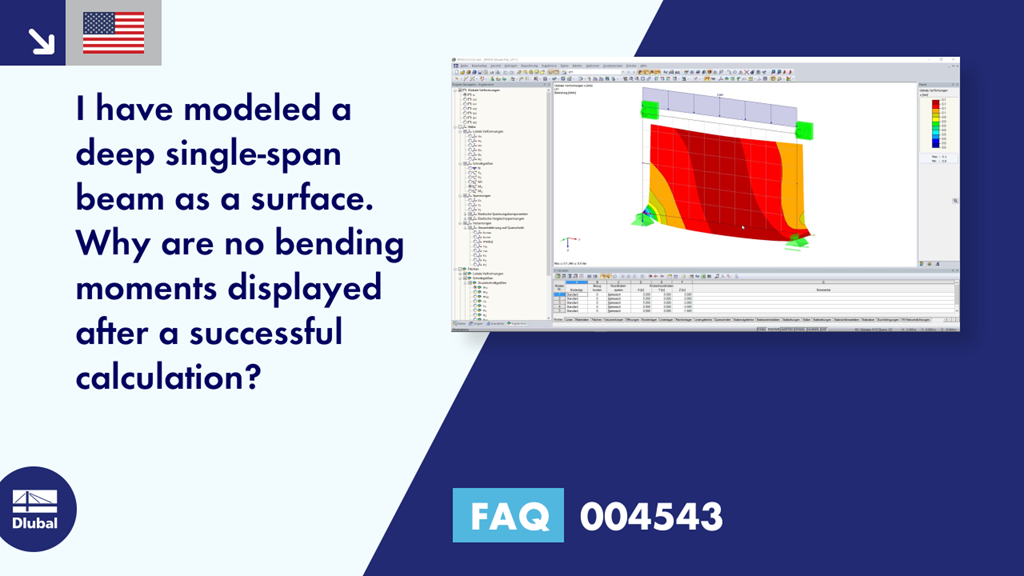

FAQ 004543 | I have modeled a deep single-span beam as a surface. Why are there no bending moments displayed after a successful calculation?

Video

First Steps with RFEM

First steps

We provide hints and tips to help you get started with the RFEM program.

22 July 2020

001609

Bastian Ackermann

Please accept Marketing Cookies to watch this video.

Question

I have modeled a deep single-span beam as a surface. Why are there no bending moments displayed after a successful calculation?

Answer

The moments mx and my (Figure 01) refer to the local surface axis system and would therefore only occur in the case of loading in the local z‑direction of the surface.

Figure 01 - Surface Internal Forces

In this case, the solution is to create a result beam in the direction of the desired single-span beam and to obtain the bending moments from the corresponding member internal forces (Figure 02).

Figure 02 - Member Internal Forces of Result Beam
