Question:
How can I model a weld, for example, as a fillet weld?
Answer:
To model a weld or a fillet weld, the best way is to use a surface. In this case, the surface thickness is equal to the weld thickness.

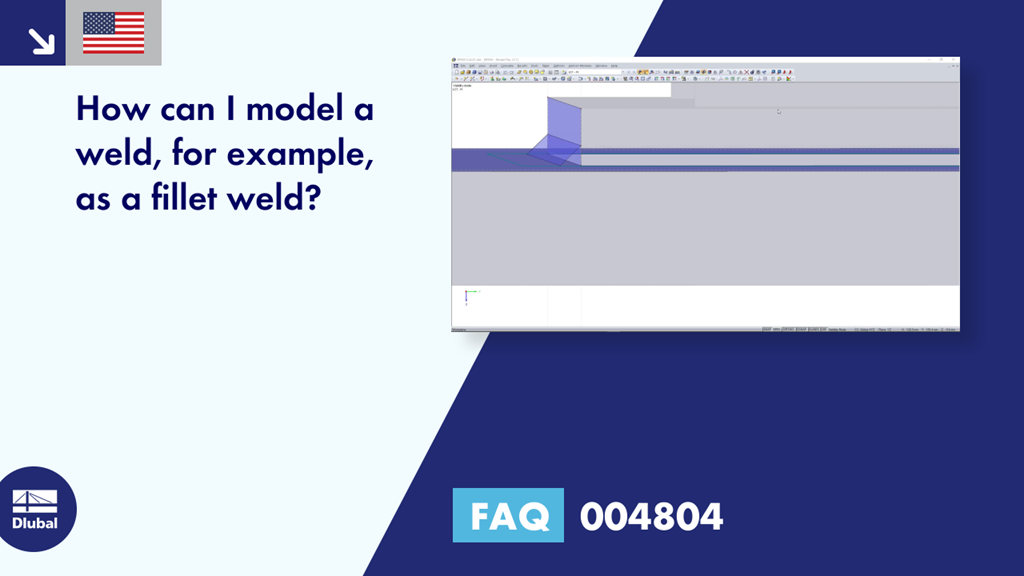

[EN] FAQ 004804 | How can I model a weld, for example, as a fillet weld?
