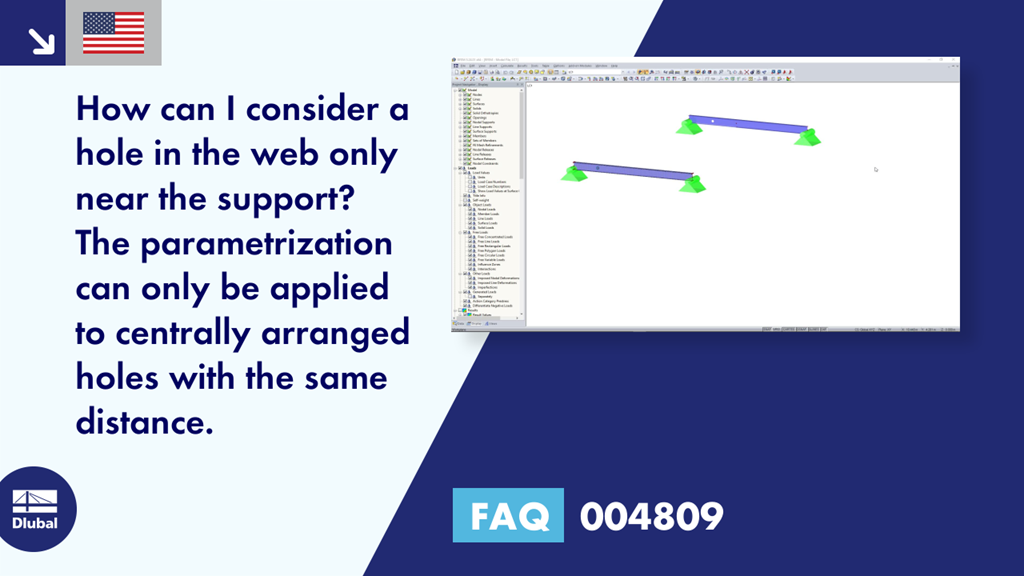

[EN] FAQ 004809 | How can I consider a hole in the web only near the support? The parametrization ...

Question:
How can I consider a hole in the web only near the support? The parametrization can only be applied to centrally arranged holes with the same distance.

Answer:
In this case, the following options are available:

1) Corresponding division of the beam (right-click Member → Divide Member) and set the parametrization in a way so that there is only one central hole for one of the beams; see Image 01.

2) Generating surfaces from the member (right-click Member → Generate Surfaces from Member), inserting a circular opening, defining a result beam; see Image 02.



;
