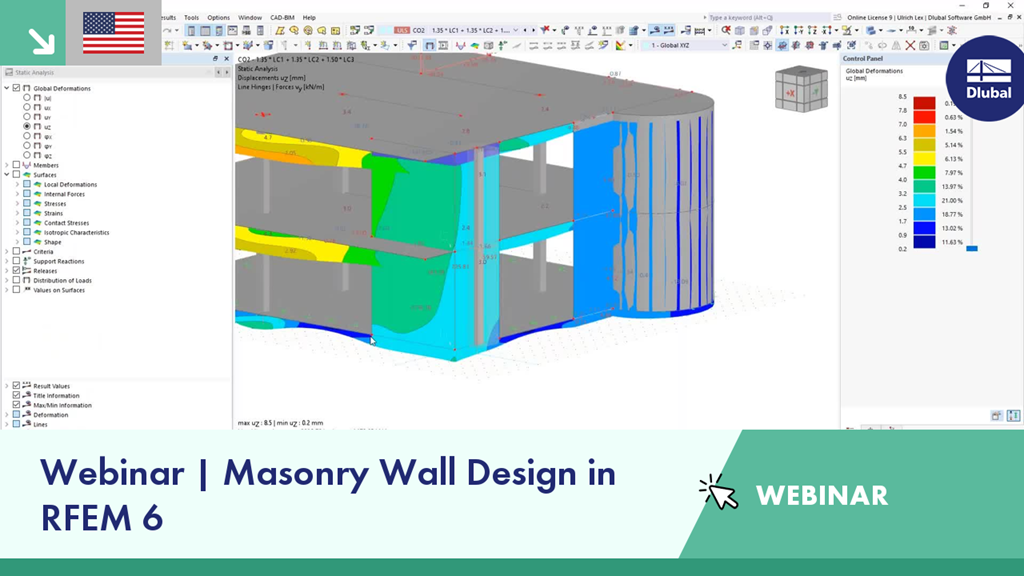

In this webinar, we show you how to model walls made of masonry in RFEM 6 and how to design them using the Finite Element Analysis (FEA).
Time Schedule:
00:00 Introduction
03:00 Material properties and determination of Young's modulus E for masonry
16:25 Determining internal forces and moments of masonry elements predominantly subjected to vertical loading using isotropic material model
35:50 Shear wall (with and without opening) using orthotropic material model
