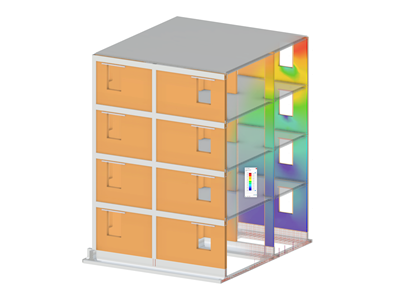

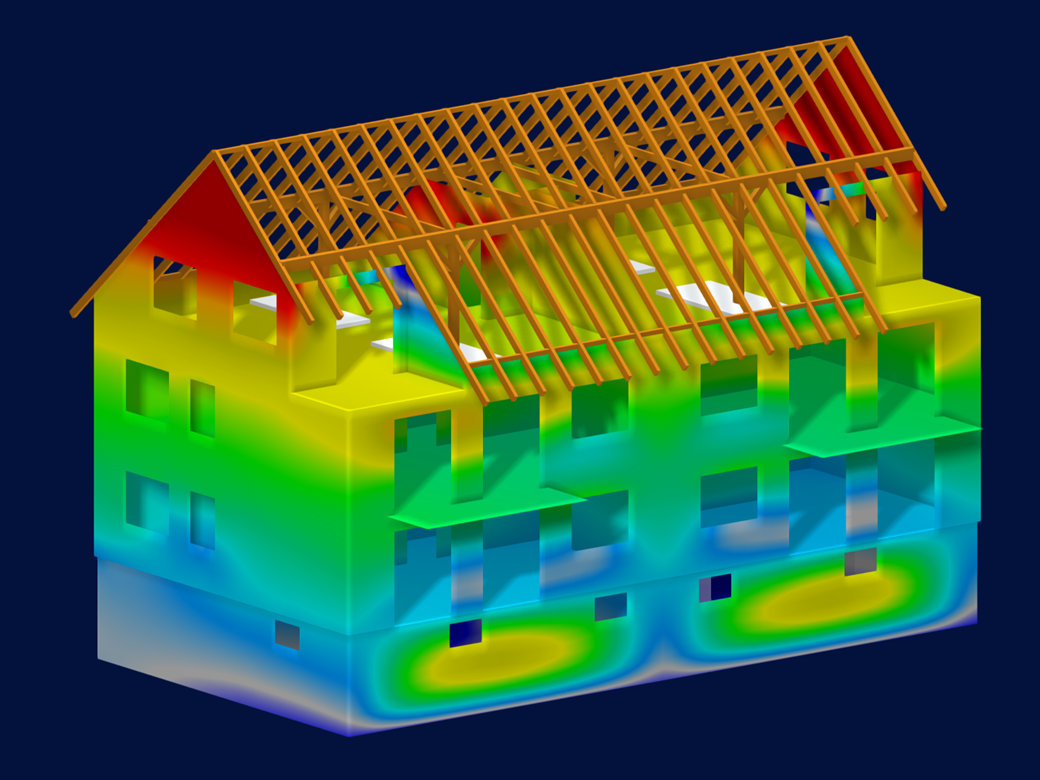

Masonry Design Using FE Method
Discover the Masonry Design add-on for RFEM to perform precise finite element analysis. Within the "DDMaS" project, the material model allows you to model complex masonry structures and to perform structural dynamic calculations.

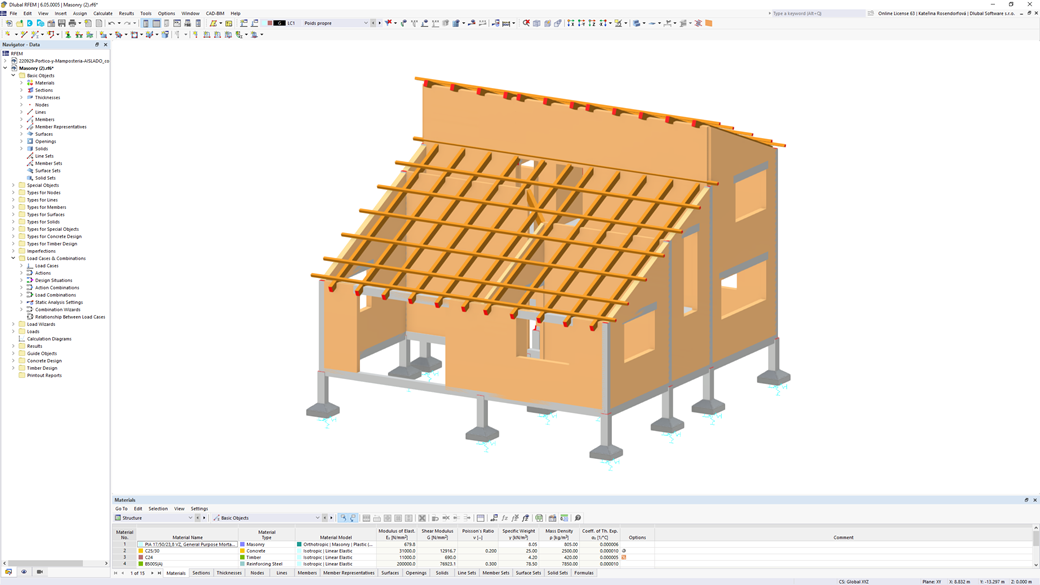

- Stress determination using an elastic-plastic material model
- Design of masonry disc structures for compression and shear on the building model or single model

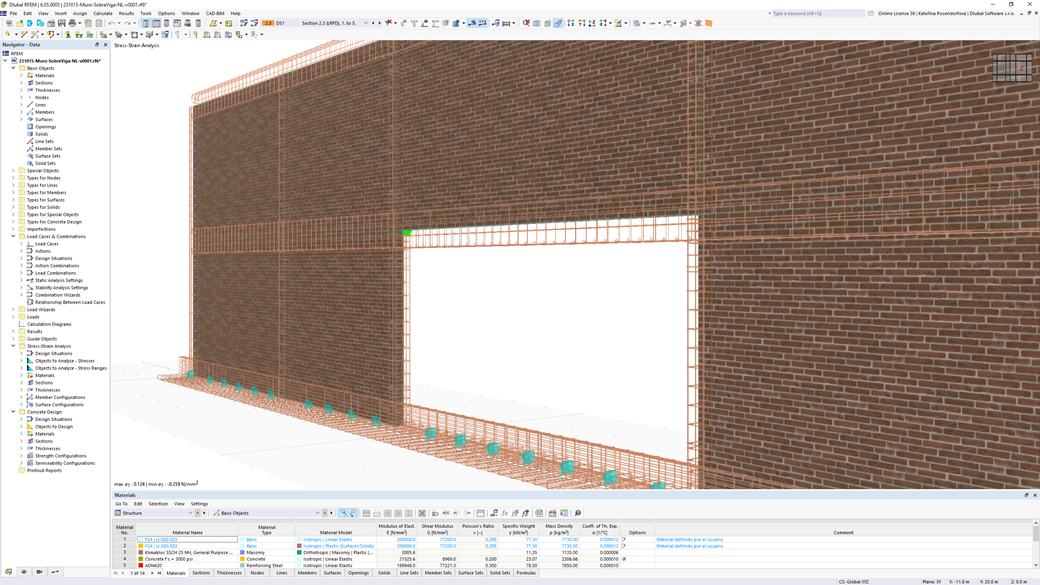

- Automatic determination of stiffness of a wall-slab hinge
- An extensive material database for almost all stone-mortar combinations available on the Austrian market (the product range is continuously being expanded, for other countries as well)
- Automatic determination of material values according to Eurocode 6 (ÖN EN 1996‑X)

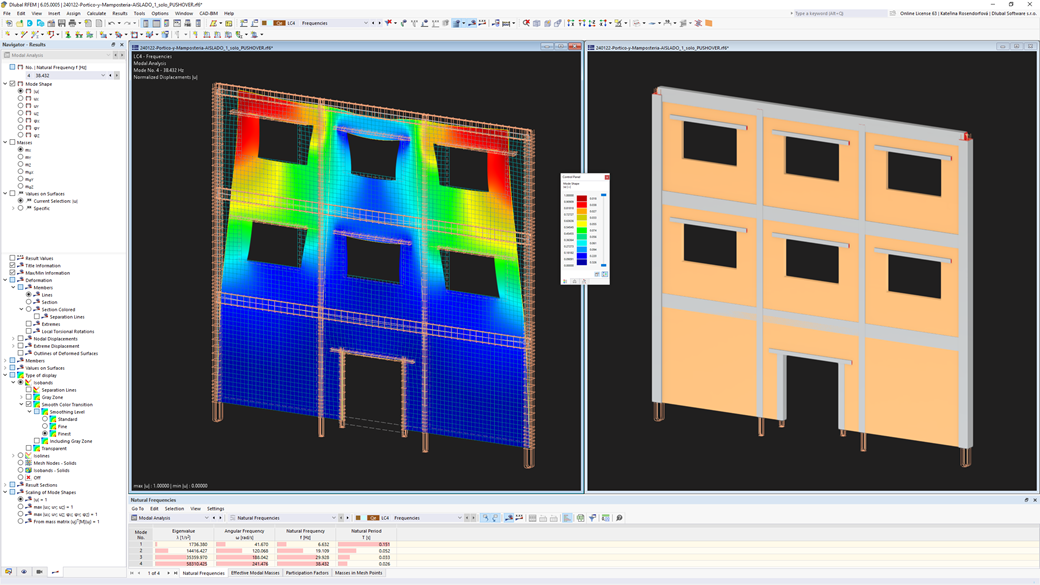

- Option to create pushover analysis
Implemented for Masonry Design with RFEM 6
.png?mw=600&hash=77a79fa70664884c89047e6ff67599bfe9cba7fb)

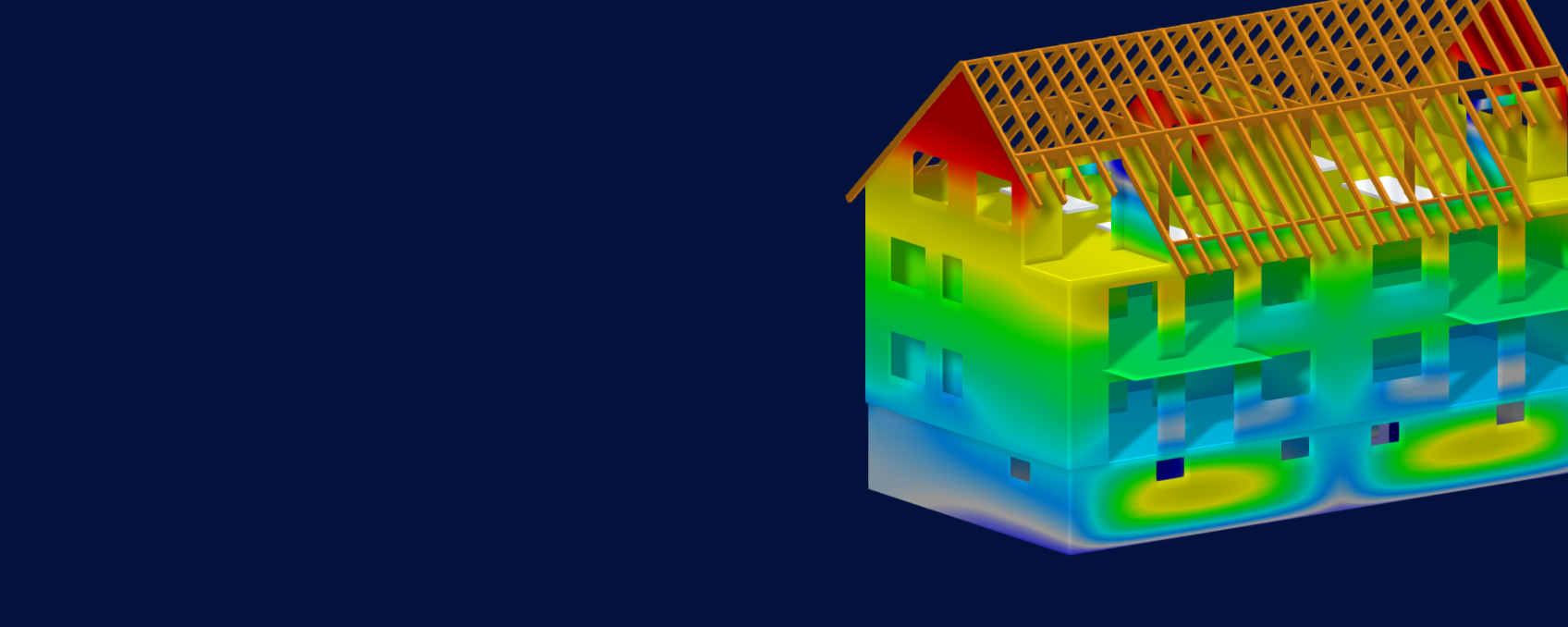

Material Model
To calculate masonry structures, a nonlinear material model has been implemented in RFEM. It is based on the approach of Lourenco, a composite yield surface according to Rankine and Hill. This model allows you to describe and model the structural behavior of masonry and the different failure mechanisms.
.png?mw=192&hash=f63e4a3f1836233005de32f60201d5392e507cf1)
