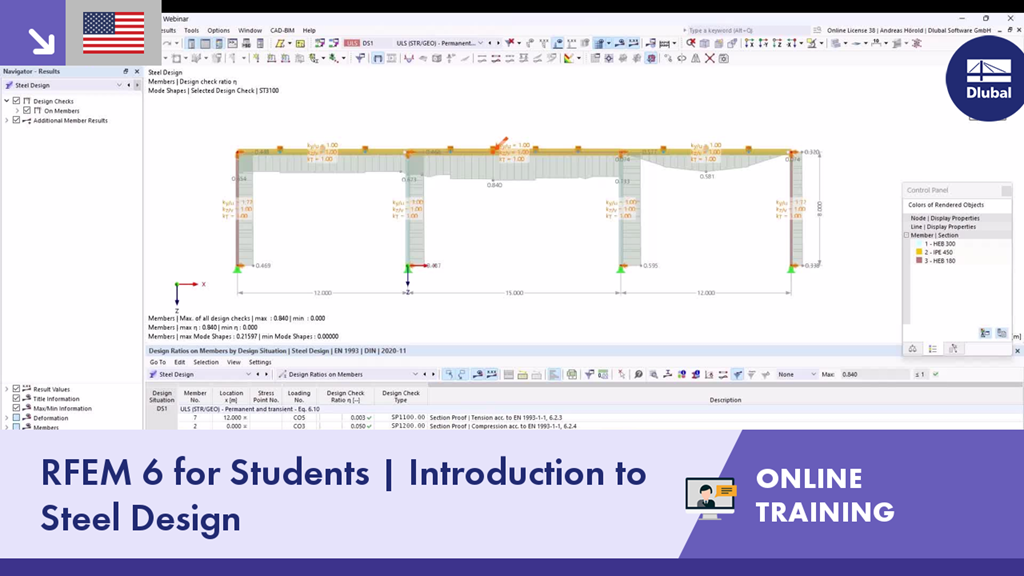

This free online training for students on steel design in RFEM 6 introduces important functions and modeling options using practical examples.
This recording was done on November 15th, 2023.
Content:
00:00 Introduction
03:25 Theoretical Background
10:40 Introductory Example: Two-span beam
30:30 Imperfections
35:45 Stability Proofs in the ULS
40:00 Example: Flat Hall Frame
