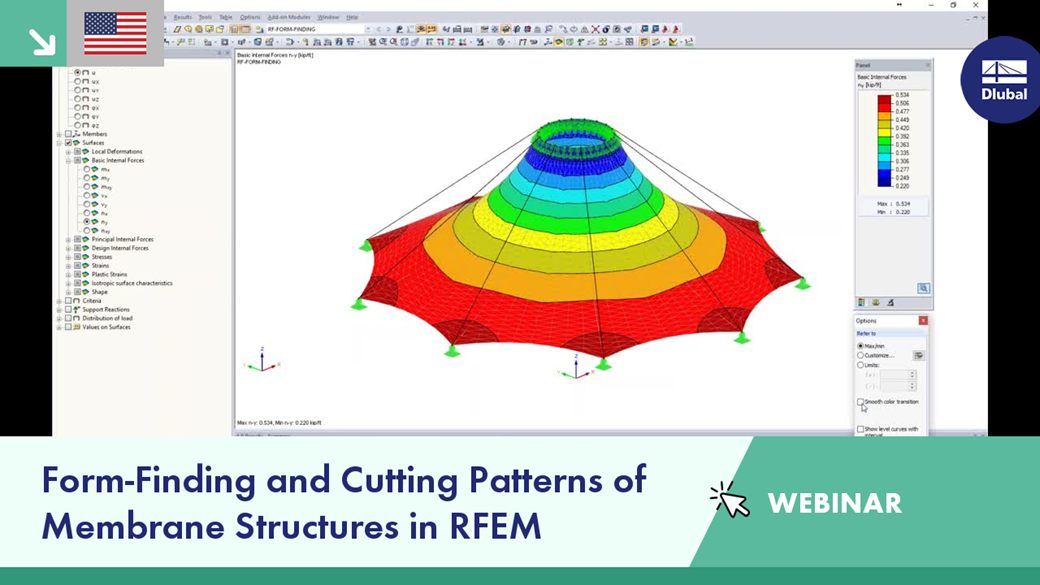

Form-Finding and Cutting Patterns of Membrane Structures in RFEM

Form-Finding and Cutting Patterns of Membrane Structures in RFEM
2017-04-18
English (US)
Free
EN-US | Flag Event
Form-Finding and Cutting Patterns of Membrane Structures in RFEM | Tue, Apr 18, 2017

  • Features of the add-on modules RF‑FORM‑FINDING and RF‑CUTTING‑PATTERN
  • Modeling, form-finding and design of a membrane structure
  • Generating of cutting patterns and export to AutoCAD
Time Schedule
00:00
Introduction
01:43
Features of RF‑FORM‑FINDING and RF‑CUTTING‑PATTERN
04:15
Fabric/cable modeling and form‑finding process utilizing RF‑FORM‑FINDING
19:50
Load application per ASCE 7 load combinations and analysis in RFEM
34:14
Design check of membrane and cable elements in RF‑LIMITS
44:40
Additional modeling of supporting structure in RFEM
50:26
Supporting structure design utilizing RF‑STABILITY, RF‑IMP, and RF‑STEEL AISC
56:52
Membrane cutting pattern design and .dxf export with RF‑CUTTING‑PATTERN
01:07:43
Closing remarks

Amy Heilig, PE

CEO – USA Subsidiary | Sales Engineer

Amy Heilig is the CEO of the USA Subsidiary and responsible for sales and continued program development for the North American market.

Dipl.-Ing. (BA) Andreas Niemeier, M.Eng.

Head of Product Engineering

Andreas is responsible for the development of RSTAB, RFEM, and RWIND Simulation, as well as the membrane structure division. In addition, he coordinates quality assurance processes and provides technical support to customers.

;
