Is it possible to deactivate the minimum internal forces for the graphical display of the result combinations so that only maximum values are shown?

Answer

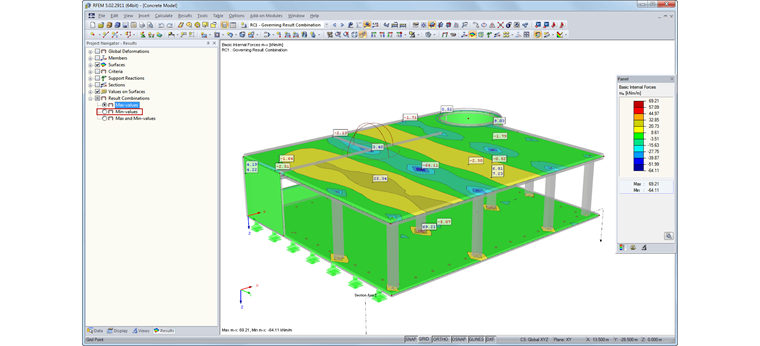

If you want to display only the maximum or minimum values of the result combinations, you can do it using the Project Navigator - Results.

There, select the category Result Combinations and activate the selection field Max Values or Min Values.
