FAQ 002087 EN

Display Settings RFEM RSTAB 5.xx 8.xx

How can I switch the helix display of spring members off?

Answer

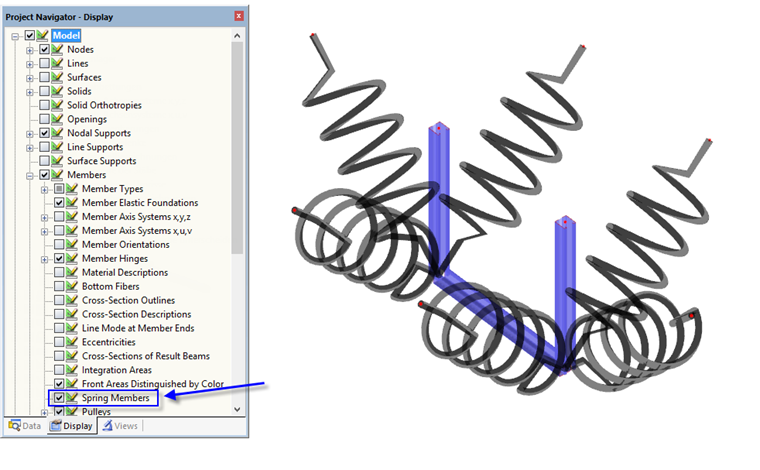

Display of springs can be specified in the Display navigator: Unselect the corresponding check box to display the spring members as normal lines.
