Reversing Global Z-Axis in RFEM 5

Where can I subsequently reverse the global axis system in RFEM 5 (direction of the global Z-axis)?

Answer:

The orientation of the global Z-axis can be changed using "Edit → Model Data → General Data".

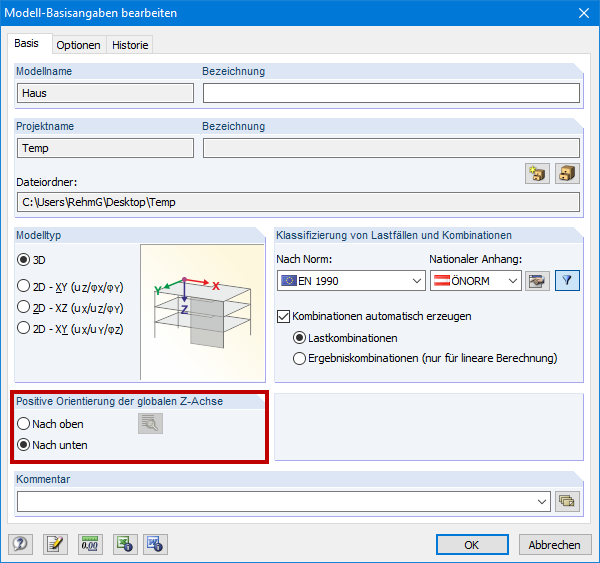

Modifying Direction of Global Z-Axis
Modifying Direction of Global Z-Axis

If the orientation is changed subsequently, problems can arise, especially with regard to the applied load. Particular caution is required here.

;
