Deactivating Individual Internal Forces in RF-CONCRETE Members

How can I deactivate the individual internal forces for the design in CONCRETE or RF‑CONCRETE Members (for example, torsional moment MT for ribs)?


Answer:

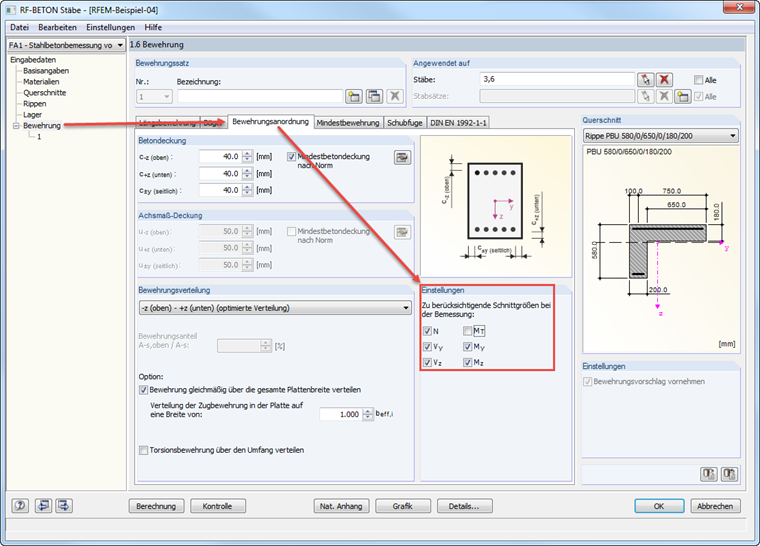

The relevant internal forces for the concrete design can be found in the "Reinforcement Layout" tab of Window "1.6 Reinforcement". Here, you can select the internal forces that should not be taken into account for the respective reinforcement group. Please note that this setting applies to all members of the reinforcement group. Therefore, you should use this function carefully.
