Error Message for Concrete Design: Design Not Possible

Error message for concrete design: Design is not possible. The specified loading with the selected load combination types does not contain any required design checks.


Answer:

In concrete design, you can define the design situations Characteristic with a direct load, Characteristic with an imposed deformation, Frequent, and Quasi-permanent.

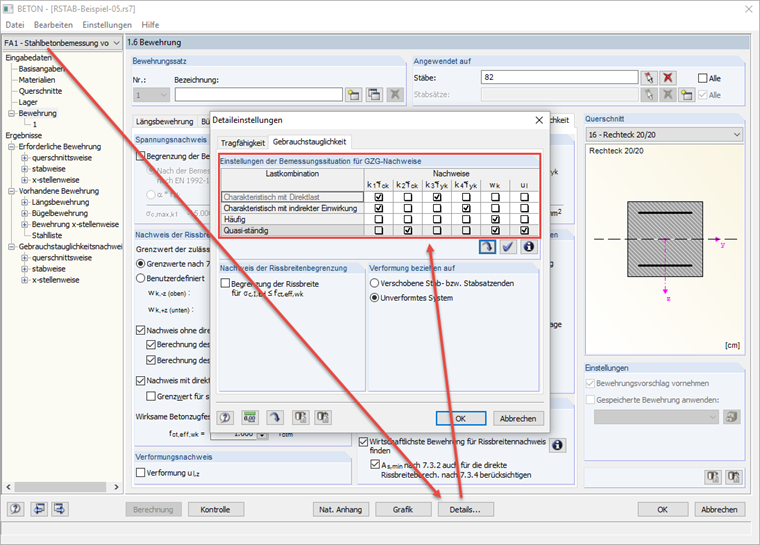

The design checks required according to the standard for the respective design situations can be viewed in the detail settings of the add-on module (see the image).

If design checks that do not correspond to the design situation are now activated in Tab 1.6 under Serviceability Limit State, a message appears after the calculation.

In this case, we recommend defining the necessary design situations or removing the design checks to be calculated in Tab 1.6.
