FAQ 002358 EN

Results RFEM

Can I define average regions on curved surfaces as well?

Answer

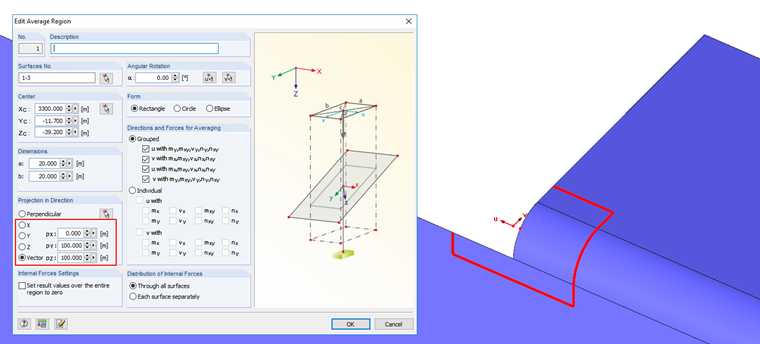

To define an average region on curved surfaces, the projection direction has to be clearly defined. Since this is not possible for the "Perpendicular" option, you can define the direction yourself. Either along the global axes X, Y, and Z, or with a vector.

Keywords

average region, curved surfaces, quadrangle surfaces
