FAQ 002437 EN 19 February 2019

Markus Baumgärtel Stand-Alone Programs CRANEWAY

How do you enter the skew force "S" in the KRANBAHN module so that it acts counter to the HS force?

Answer

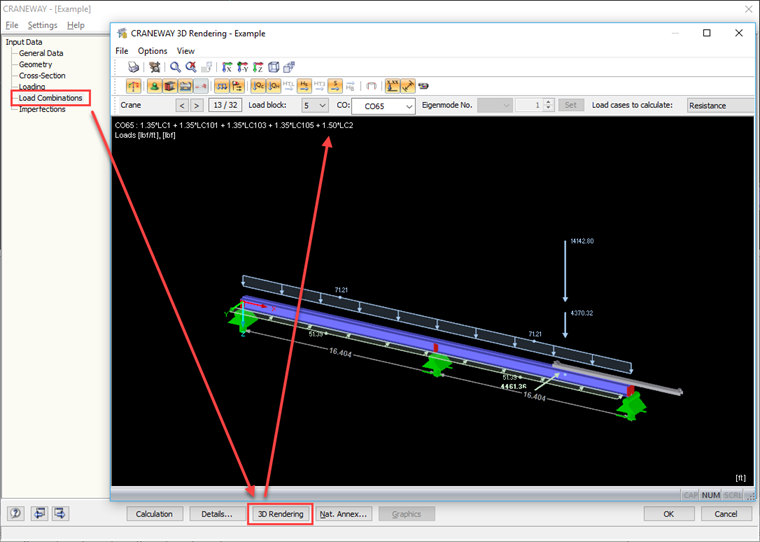

The S-force and the H_S forces must always be entered in accordance with the sign. In the mask 1.5 "Load combinations" or via the button "3D Rendering" and display of the load block no. 5, the orientation of these forces can be checked graphically.

There is already an interesting webinar on the topic of " Designing crane runways according to Eurocode 3 ".

Keywords

Slanting force direction S-force direction of force Krahnbahn load direction crane runway
