How can I display all result values on the individual surface grids? When creating the printout report or in the model, I am not given all the result values on the individual surface grids (stress curve and global deformation u), although I have specified this in the window.

Answer

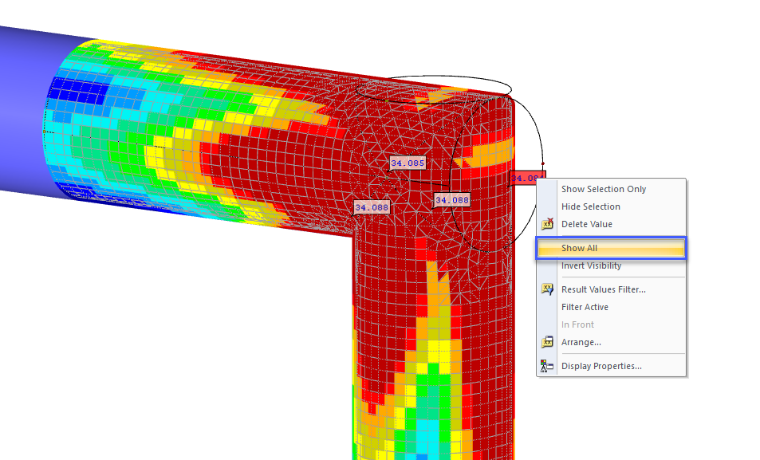

It is usually enough to right-click on one of the displayed raster results and then select "Show all". The results should then be displayed at each grid point in the result graph and also in the printout report.

Keywords

show everything result values grid points
