In RF-MOVE Surfaces, can I enter a covering, over which the load distribution width of concentrated loads is automatically taken into account?

Answer

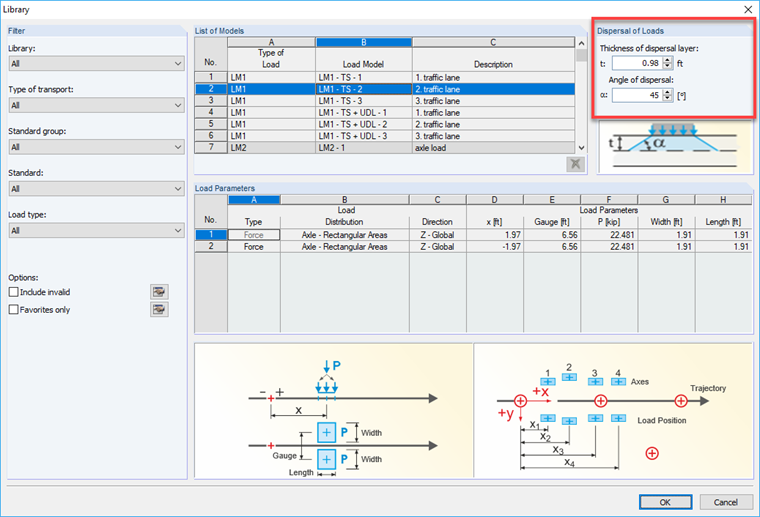

If you apply a moving load from the library of load models, you can specify there a "thickness of dispersal layer" and the "angle of dispersal" (see Figure 01). Based on these entries, RF-MOVE Surfaces determines the length and width of the rectangular surfaces and generates free surface loads.

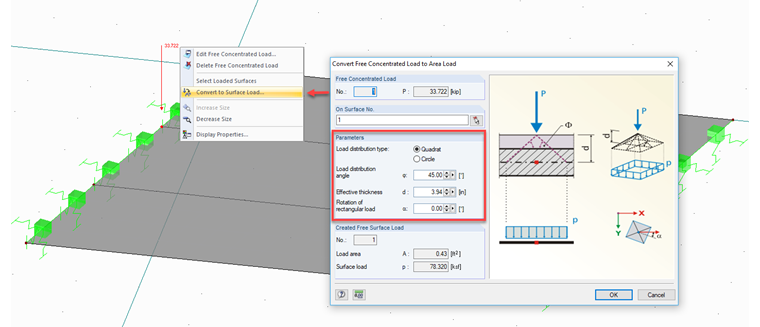

Alternatively, if you have entered concentrated loads as moving loads, you can right-click the free concentrated load and convert it into a surface load by using the corresponding option in the shortcut menu (see Figure 02). There are also the parameters for controlling the load width.

Keywords

concentrated load surface load convert RF-MOVE load distribution load width
