FAQ 002600 EN 24 April 2019

Sandy Matula Printout Report RFEM

Is it possible to print out multicolour scales aligned side by side?

Answer

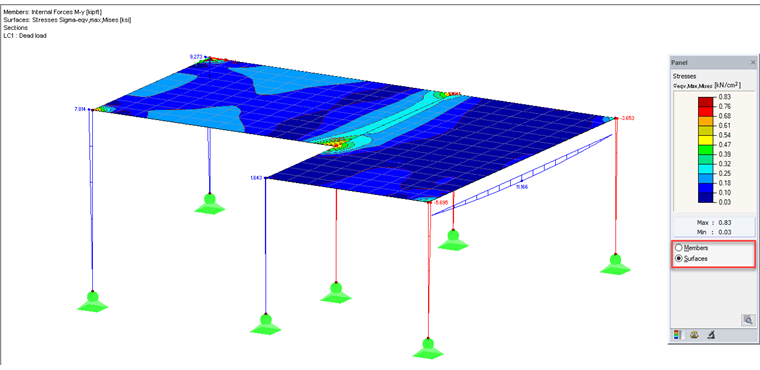

When displaying member and surface results on the screen at the same time, only one panel appears. However, you can switch between members and surfaces (see Figure 01).

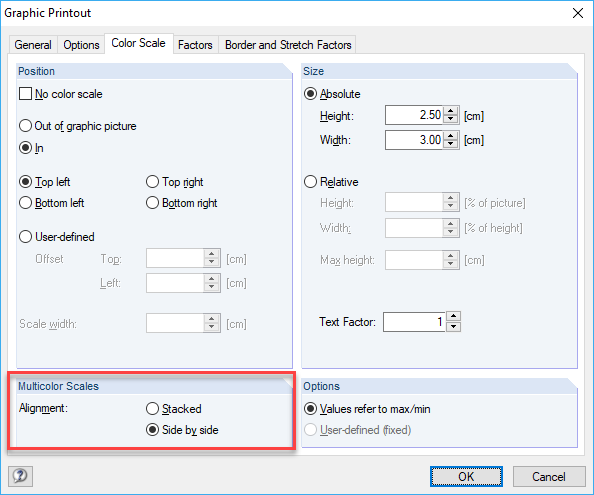

In the case of the graphic printout, you can specify how to display both panels in the printout report (see Figure 02).

Keywords

multicolour scales scale panel results printout report print
