The load combinations on my PC do not show the load case numbers (LF1, LF2, LF3, ...), but with the action categories. So "G", "Qw", "Qs", "Imp" etc.
What did I change? Or where can I change that?

Answer

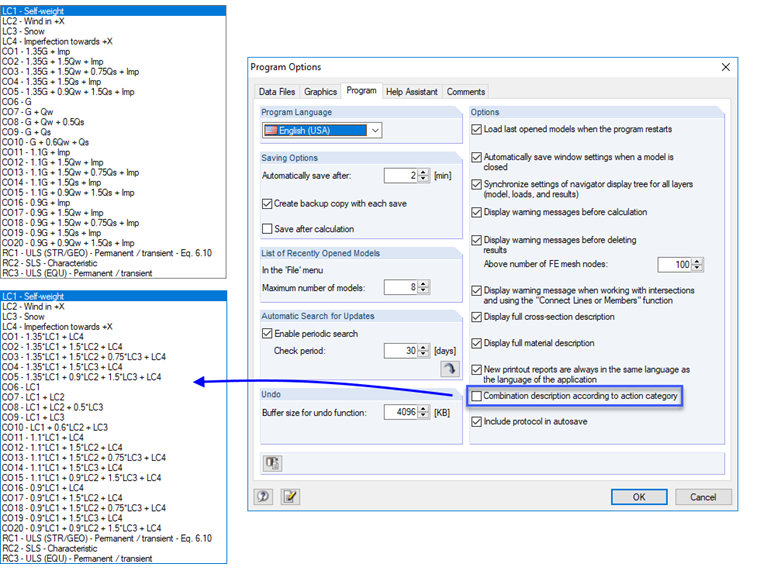

You can find this setting in the program options in the "Program" tab.
If you uncheck "Description of combinations according to exposure category", then the load case numbers are displayed in the LCs.

Keywords

Load combination, exposure category, designation,
