Spring Stiffness of Foundation Plate with RF-FOUNDATION Pro

Yes, this is possible in RFEM 5 and RSTAB 8. To do this, activate the calculation of settlement in RF‑/FOUNDATION Pro. The export of the spring stiffness requires a calculation as "rigid plate". You can specify this in the settings for the settlement calculation (see Image 01).

1 Settings for Settlement Calculation

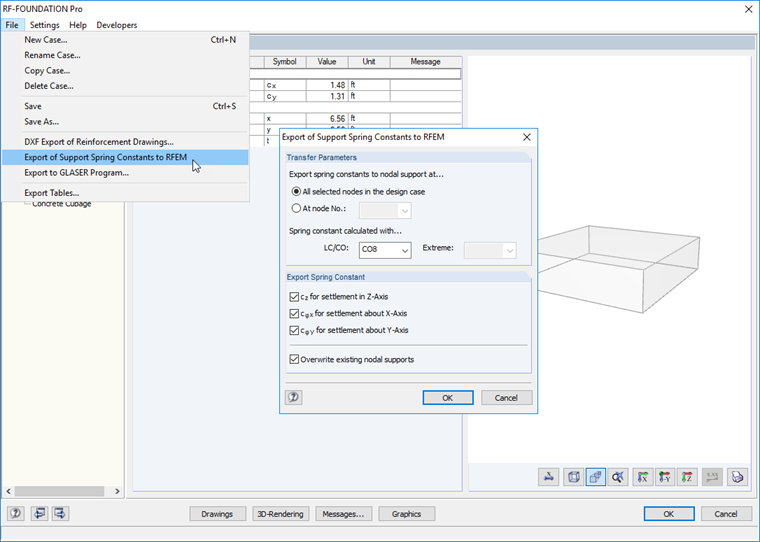

After the calculation, the export option is available using the "File" menu in RF‑/FOUNDATION Pro (see Image 02).

2 Menu "File" to Export Support Spring Constants

The export of stiffness is possible in RFEM 5 and RSTAB 8.
