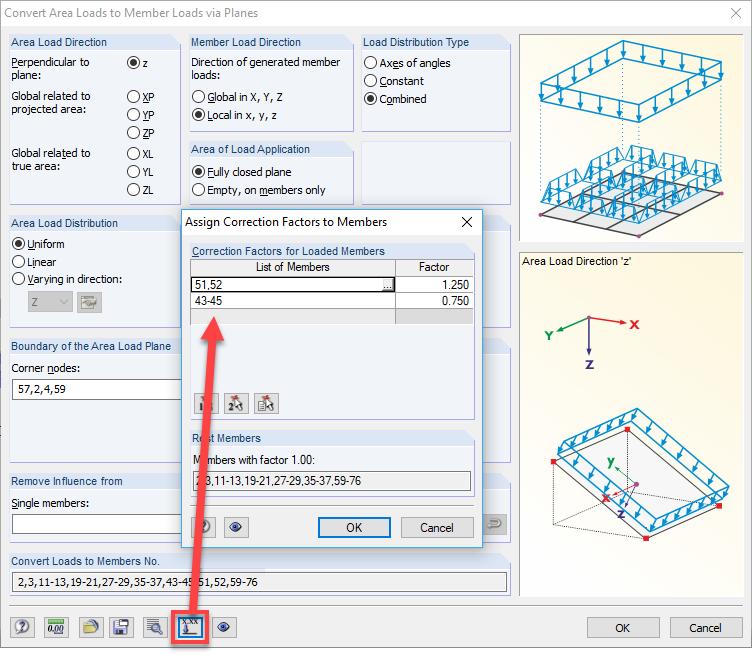

The effect of continuity can be taken into account using correction factors. It can be entered in the "Assign Correction Factors to Members" dialog box, which you can open by clicking the [Load correction factors] button.
Question
How can I consider continuity effects in load generators?
