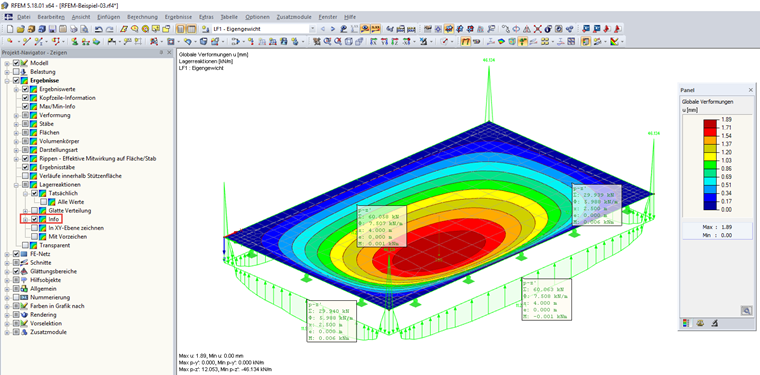

In RFEM, additional information about the result distributions of line supports can be displayed in the Display navigator. What is the interpretation of these values?

Answer

Additional information is available in the work window for each line support. They are interpreted as follows:

Θ: Sum as resultant force
Φ: Average value
x: Distance of the line center from the line start
e: Eccentricity of the resultant with respect to the line center
M: Moment due to the resultant eccentricity
