Is it possible to change the relation of the deformation results to a user-defined coordinate system?


No, this possibility does not exist. Node deformations are always output in relation to the global coordinate system, regardless of whether the structure input was done using a user-defined coordinate system.

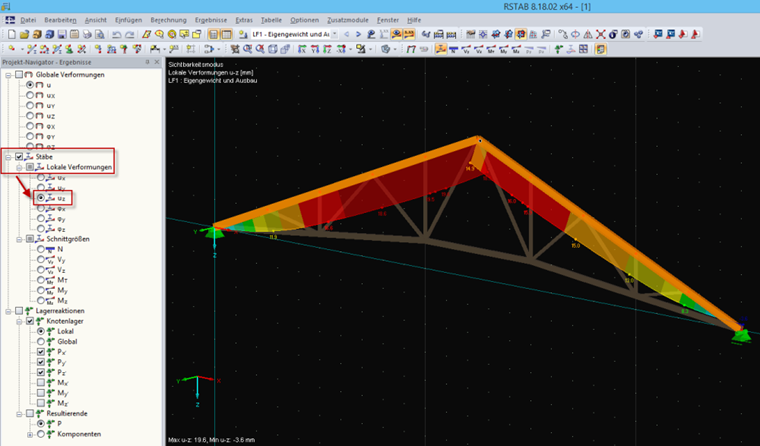

Optionally, the output of local bar or area deformation results may help as needed.


Custom coordinate system Deformation results Deformations locally
