FAQ 002863 EN 10 April 2019

Markus Baumgärtel Add-on Modules CONCRETE CONCRETE Columns RF-CONCRETE RF-CONCRETE Columns

Is it possible to use your own materials in RSTAB or RFEM in the add-on module "Concrete Reinforced Concrete Design"?

Answer

Yes, this is possible, but this material must be created in the corresponding filter via the material library, so that all relevant information for the module is available. In addition, the standard group or standard must be selected so that it fits the design standard in the module.

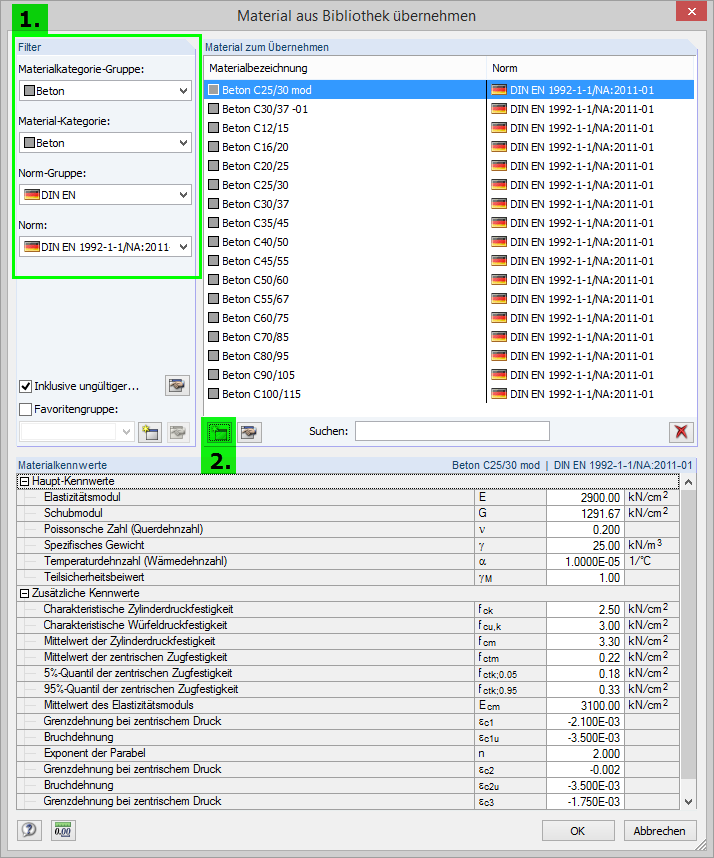

It is best to go to the material library and select the material category and group as well as the corresponding standard there. Create a new material after selection (see figure 1)

Afterwards, a corresponding dialog opens by selecting a material name and the corresponding parameters (see Figure 2). The material should then be usable in the design.

Keywords

Own material Custom material
