Displaying FE Mesh on Deformed System

Is it possible to display the FE mesh on a deformed structure?

Answer:

Yes, it is. To do this, activate the "On Surface Results" check box under "FE mesh" in Project Navigator – Display.

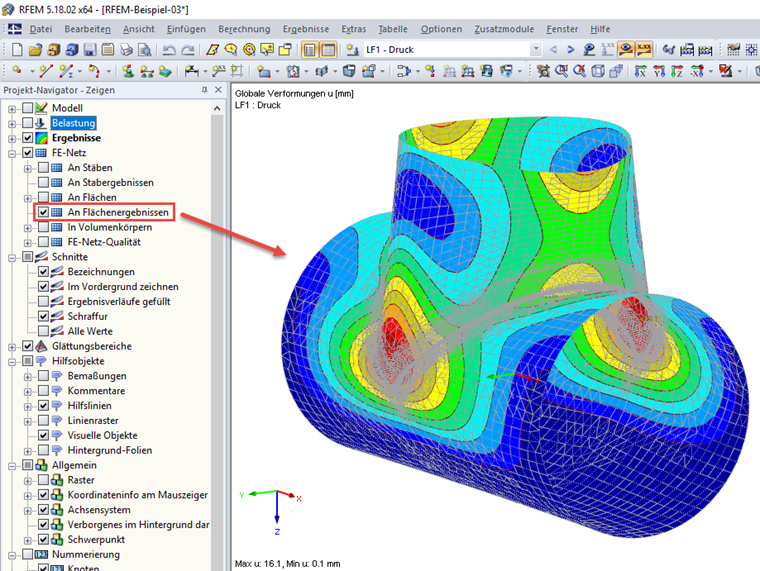

FE Mesh on Surface Results
FE Mesh on Surface Results
