FAQ 002877 EN 10 April 2019

Wieland Götzler Add-on Modules STEEL EC3 RF-STEEL EC3

I would like a stair railing, for which I have created a set of rods, measured. The profile is a hollow profile. Can the proof of stability of the whole system be made for this purpose, or do I have to transfer this to all stock in STAHL EC3 in a replacement bill?

Answer

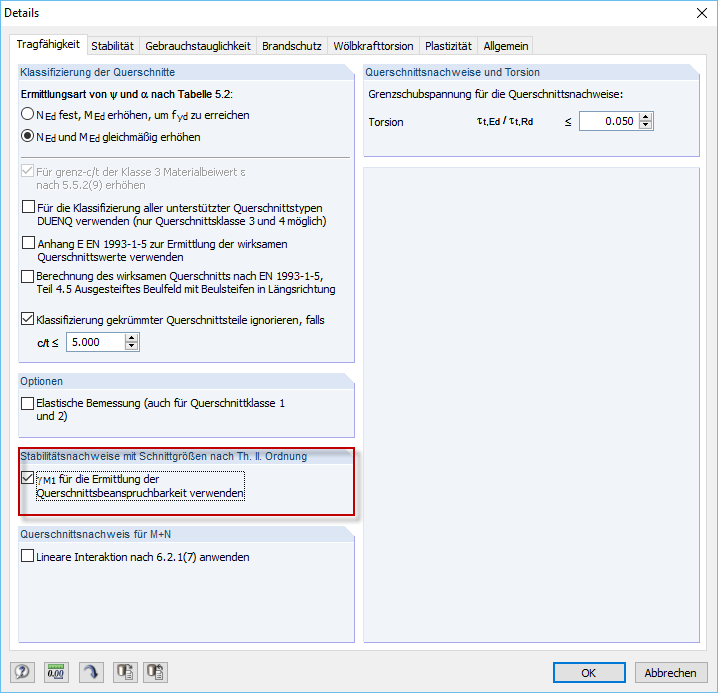

For a vault-free cross-section, a proof of the complete system is recommended using theory II. Order - internal forces and local imperfections. The entry of the effective lengths and nodal bearings (with staff sets) can thus be omitted. However, please activate gamma_M1 for cross-section verification.

Keywords

Hollow profile Stability analysis Torsional buckling Buckling Buckling Treppenwange Rod set Nodal Supports Effective lengths Overall system Proof Theory II. Order
