FAQ 002880 EN 10 April 2019

Markus Baumgärtel Display Settings RFEM RSTAB

Can I hide the text of the standards for the material designation, so to speak a short form?

Answer

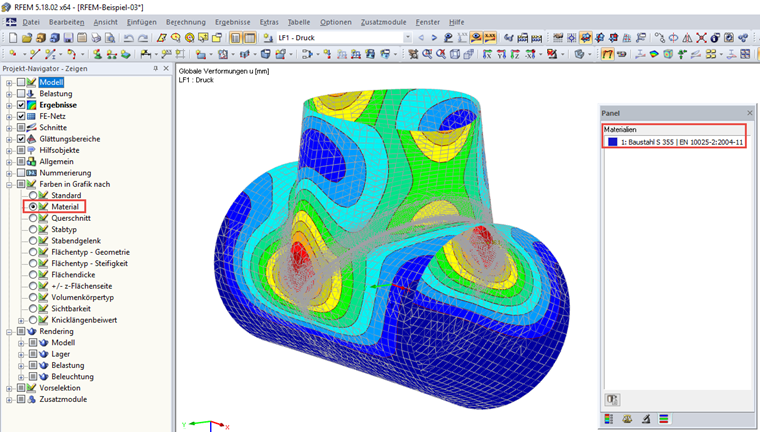

If the colors are set according to the "Material" setting in the Display Navigator, then the full material name is displayed in the panel by default, ie Material Name + Standard (see Fig. 01). The full material designation is also displayed in the tables (Table 1.3) of RSTAB and RFEM.

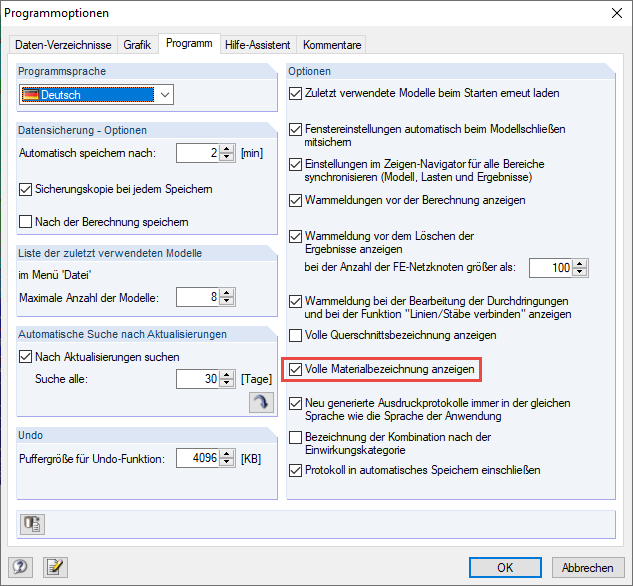

If you only want the material designations in the panel and tables, you can deactivate the full material designation in the "Program Options" dialog (see Fig. 02).

Keywords

Material Material panel
