Answer:

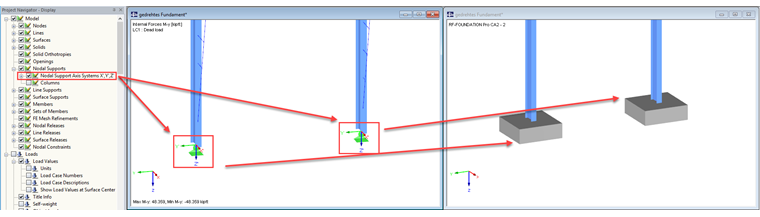

Yes, you can. If a nodal support is arranged at a certain angle in RFEM or RSTAB, the geometry of the foundation at the node also follows this coordinate system (see Image 01).
Question
Can I rotate a foundation about the Z-axis in the RF‑FOUNDATION Pro add-on module?
