Is the longitudinal reinforcement defined in RF-CONCRETE Surfaces taken into account for the determination of internal forces in RFEM?

Answer

No, no basic reinforcement defined in RF-CONCRETE Surfaces is considered in the determination of internal forces in RFEM. In RFEM, the internal forces are determined with the modulus of elasticity of the selected concrete. The reinforcement amount has no influence (linear-elastic calculation, state I).

The situation is different if you perform a nonlinear design in the serviceability limit state state II with the RF-CONCRETE NL add-on module. Here, you specify an available basic reinforcement that you want to consider for the nonlinear calculation in state II. In nonlinear design (available only for SLS), the determination of internal forces is carried out with the effective stiffnesses (state II). Thus, the defined reinforcement has an influence on the internal forces.

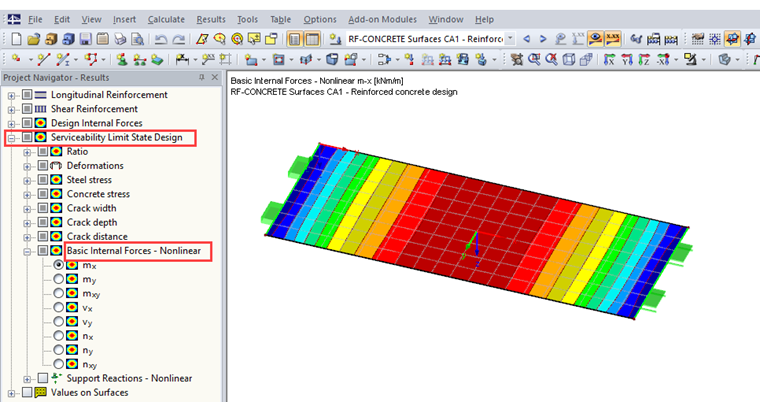

You can evaluate these internal forces (from state II with the influence of the defined reinforcement) in the results of RF-CONCRETE Surfaces. See Figure 01 with the Results navigator of the RF-CONCRETE Surfaces add-on module.


Keywords

Internal forces Provided basic reinforcement Determination of internal forces Reinforcement Stiffness
