FAQ 003126 EN

6 June 2019

Markus Baumgärtel Modeling | Loading RFEM RSTAB

Is it also possible to transform a generated load into a “real” member load?

Answer

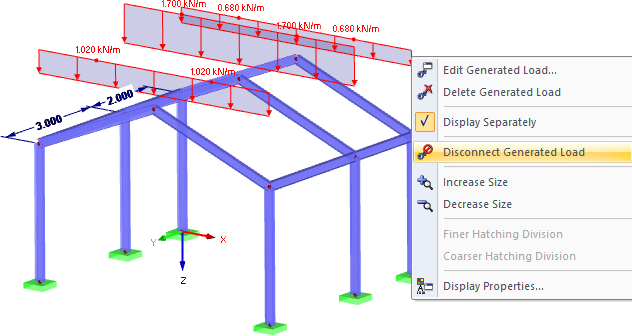

Yes, that is possible. To do this, right-click the generated load and select the “Disconnect Generated Load” function in the shortcut menu (see Figure 1). The generated loads are converted into normal member loads and can be changed as required.

Keywords

Member load Generated load Disconnect Disconnected
